Product Attribute:
Supply Ability:1000 Set/Sets per Month 12v dc air conditioner compressor
Delivery Details:10 days after prepayment of 12v dc air conditioner compressor
Production Description:
About Anchor
About us:
- 13 years' experience in auto air contidioning parts
- full range of auto ac poducts
- 1 year quality warrant for all products
- high professional quality compressors at competitive price
- 100% Brand New
- Short Lead Time
- Professional technic and high efficiency management team
- Contact us for COMPLETE CATALOG
- Inform us OE No., UAC No., RC No. and other popular part numbers and get quotation immediately
Product Description

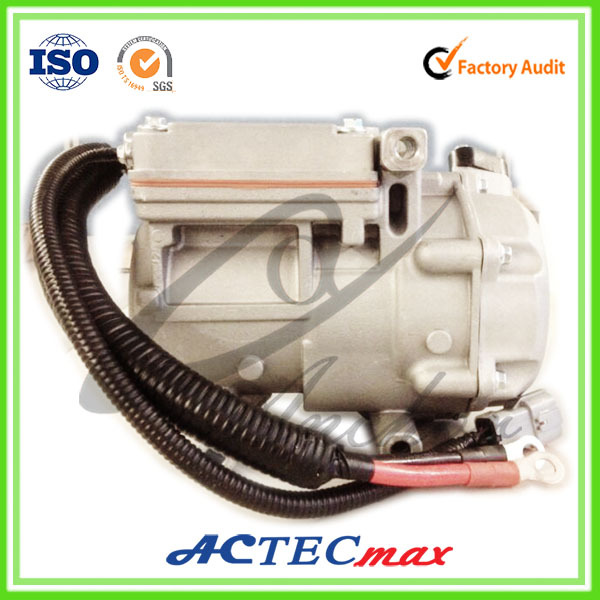

Electric car ac compressor, DC 12v Compressor
Characteristics:
DC power, 1000-6000rpm, 18cc/rev, high-speed 12v dc air conditioner compressor
1. High efficiency and energy saving: scroll compressor connected to a brushless DC permanent magnet motor DC power,
2. Steady-state performance: the compressor speed is independent of vehicle speed, gives you safer and more DC power,
3. Cooling capacity is adjustable by regulating rotary speed.
4. The whole car automatic ar conditioning system consist of: electric compressor, sensor and appropriate controlling systems
5. Multi-protection function for device safety: circuit overload protection, under-voltage protection, overheat protection
6. Lighter and more compacted than traditional engine-powered compressors
7. Environmentally friendly energy comsumption DC power, 1000-6000rpm, 18cc/rev, high-speed 12v dc air conditioner compressor
Technical Details
|
Performance |
|
Refrigerant Capacity (2000rpm) |
0.92 kw / 3150 Btu/hr |
|
Input Power |
0.49 kw |
|
Current |
40 A |
|
Refrigerant Capacity (3000rpm) |
1.38 kw / 4700 Btu/hr |
|
Input Power |
0.74 kw |
|
Current |
60 A |
|
Refrigerant Capacity (4500rpm) |
2.15 kw / 7300 Btu/hr |
|
Input Power |
1.15 kw |
|
Current |
96 A |
|
Usable Range |
|
Evaporator Temperature |
2?/span> - 70 ?/span> |
|
Condenser Temperature |
77 ?/span> - 167 ?/span> |
|
Compression Ratio |
8.0 MAX |
|
Refrigerant |
R134a |
|
Start Temperature |
-26 ?/span> - 158 ?/span> |
|
Working Temperature |
-26 ?/span> - 212 ?/span> |
|
Storing Temperature |
-40 ?/span> - 221 ?/span> |
|
Compressor Specifications |
|
Discharge Capacity |
18 cc/rev |
|
Refrigerant |
650cc |
|
Speed Range |
1800rpm - 4500rpm |
|
Safety Valve Pressure |
4.0 Mpa |
|
Controller Specifications |
|
|
Max Power |
1600 W |
|
Frequency |
30 hz - 100 hz |
|
Overheating Protection |
212?/span> |
|
Low Voltage Protection |
10 V |
|
Over Voltage Protection |
16 V |
Related Products
|
|
SD 5h14
|
|
V5 series |
|
SD 7h15
|
CVC series |
|
SD 7v16
|
Denso 10p |
|
SD 6v12
|
Denso 10s |
|
sd 7b10 |
|
Packaging & Shipping
Packing for 12v compressor:
A) Sturdy carton box for each set of compressor
B) 4 unit in 2 big box wrapped with plastic
C) Standard exportation pallets
D) ACTECmax mark or according to client's order
