Description:

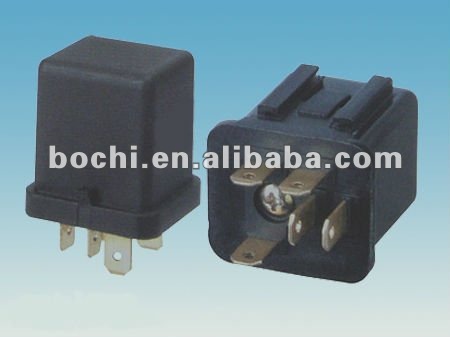

Auto Relay Car Relay with Waterproof, High-power
Contact Form:
1A/1C
Terminal Material:
Silver Alloy
Rated Isolation Current:
40A
Contact Resistance:
50m
Nominal Coil Voltage:
12V-24VDC
Coil Power Rating:
1.8W
Breakdown Voltage:
550V AC
Breakdown Voltage Between contact and coil:
750V AC
Insulation Resistance:
100mΩ
Electrical Lifespan:
100000times
Mechanical Lifespan:
10000000times
Rated Temperature:
-40°C~+85°C
Pull-in Time:
10ms
Release Time:
5ms
Terminal Configuration:
Plug type
Physical Size:
30×27×46
Application:
Isuzu changing light,rechargeable
