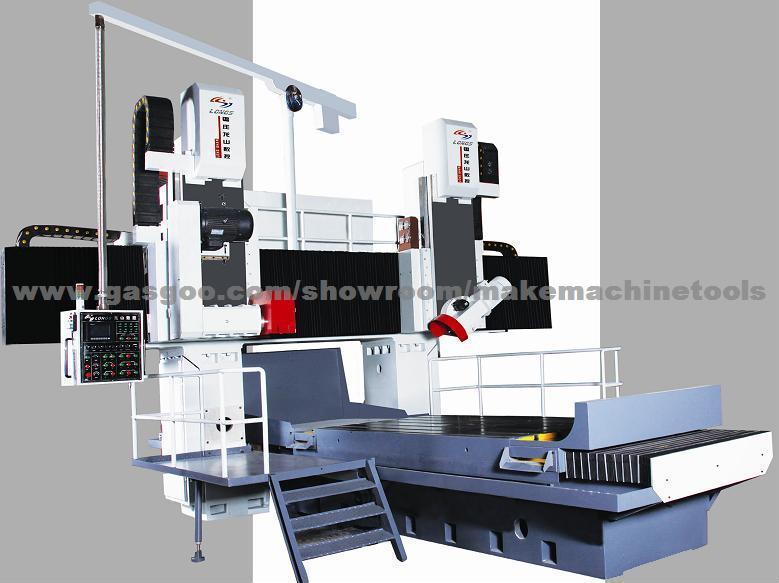

Mk Series Guideway Grinding Machine
Mk Series Guideway Grinding Machine Features 1.Composed of PLC, hydraulic transmission system, servo motor-reducer-ball screw drive system, box shape frame, etc. 2.Horizontal grinding head is mainly for grinding level planeGrinding incline 90°of V type guide-way is possible, vertical grinding head is for side planeElectrical angle adjustment & hydraulic locking, grinding incline of V type guide-way & swallow-tail slot at any angle is possible. 3.Gantry structure and close, strong & box structure composed of double column, beam & bed. Rectangular staged guide-way with good mechanical property & high rigidity. 4.State-patented spindle for horizontal grinding head and roller bearings for vertical grinding head. 5.Step-less & stable table motion with low noise, independent hydraulic station with cooling unit. Long-range-control & step-less table moving speed with inching & auto function. 6.It is with auto lubrication and it stops & alarms automatically if oil not enough.
NO.
Specifications
MK1630
MK2040
MK2060
1
Max. grinding width/length mm
1600/3000
1600/4000
2000/4000
2000/6000
2
Max. grinding height(H./V.) mm
