Product Attribute:
Supply Ability:3000 Piece/Pieces per Month
Delivery Details:15days
Production Description:

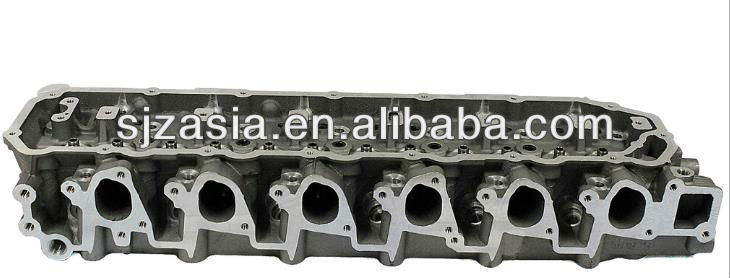

cylinder head bare and assembly aftermarket replacement factory
Patrol GR/Forklift/Safari 4478cc 4.5L OHV 12v
OEN:11041-VC000/11041-VB500
below info is for reference only:
The TB straight-six petrol engine was released in 1987 as the TB42. Bore and stroke were 96 mm × 96 mm (3.8 in × 3.8 in). Cubic capacity was 4169 cc (254.39 cubic inch displacement). The engine was released with a two-barrel carburettor and a point type distributor. It was used in the Nissan Patrol Y60 and Y61 series.
TB45E and TB45S
In 1997 the TB45 was produced. The cylinder bore was increased to 99.5mm but the stroke remained at 96mm. It was available as TB45S (with carburettor and electronic ignition) or TB45E (with electronic fuel injection and electronic ignition). OHV 200 PS (147 kW; 197 bhp) @ 4400 rpm 35.5 kg·m (348 N·m; 257 lb·ft) @ 3600 rpm
-
Nissan Safari & Nissan Patrol series Y60 & Y61
OHV 173 PS (127 kW; 171 bhp) @ 4400 rpm 32.0 kg·m (314 N·m; 231 lb·ft) @ 3600 rpm
-
Nissan Civilian & Isuzu Journey series W41
Features:
Hebei Jiayuan Auto Parts Parts manufacture cylinder head with the following features:
·Machined to Factory Specifications with CNC machining
· Surface Cylinder Head Deck
· install valve to achieve assy(optional)
· Cleaned and Magnafluxed
· Shrink Wrapped and Palletized for shipping
· Quality Control Inspection Sheet is Attached
workshop picture:
our CNC equipment and Q.C.
more picture of strong casting technology
Remark: all original manufacturers' logo, product model, description are for reference only.any part listed are not implied to be products of original manuafcturers
