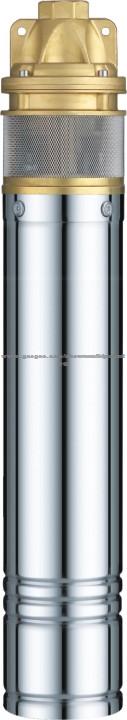

4SKM100&4SVM100 Submersible Pump China-Gasgoo.Com

Product Attribute:

Voltage:12v

Control Type:Manual adjustment

Drive Type:Stand-alone

Applicationt:

DADI Auto

Production Description:

4SKM100/4SKM150/4SVM100 Submersible pump ,submersible pump manufacturer -Zhejiang EO PUMP CO.,LTD

TECHNICAL DATA:

-Pump:
Qmax: 3.5 (m3/h)
Capacity from 0.5 to 3.5(m3/h)
Total head from 2 to 52(m)

-MOTOR:
Rewindable oil-filled motor.
Power: 1 to 2 HP (1 phase/3 phase)
Insulation class : B
Protection grade: IP 68
Maximum diameter : 95mm
Highest temperature of liquid : 35 °C
International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For sprimking and flow irrigation plants.
These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:
Water temperature up to 35 Cent.Degree.
Maximum sand content: 0.25%
Minimum international diameter of well: 4''.
Maximum immersion depth: 80m.

-Materials:
Pump casing: AISI 304 stainless steel
Impeller: brass
Suction support: brass
Oil chamber: cast iron
Inlet and Outlet:  brass
Shaft AISI 304 stainless steel.
Motor casing: AISI 304 stainless steel.
Mechanical seal: tungsten carbide
