Product Attribute:
Type:Headlight
Voltage:DC12V-24V
Lamp Type:LED
Certification:CE, ROHS, IP65
Car Make:All car
Place of Origin:Guangdong China (Mainland)
Brand Name:Kimh

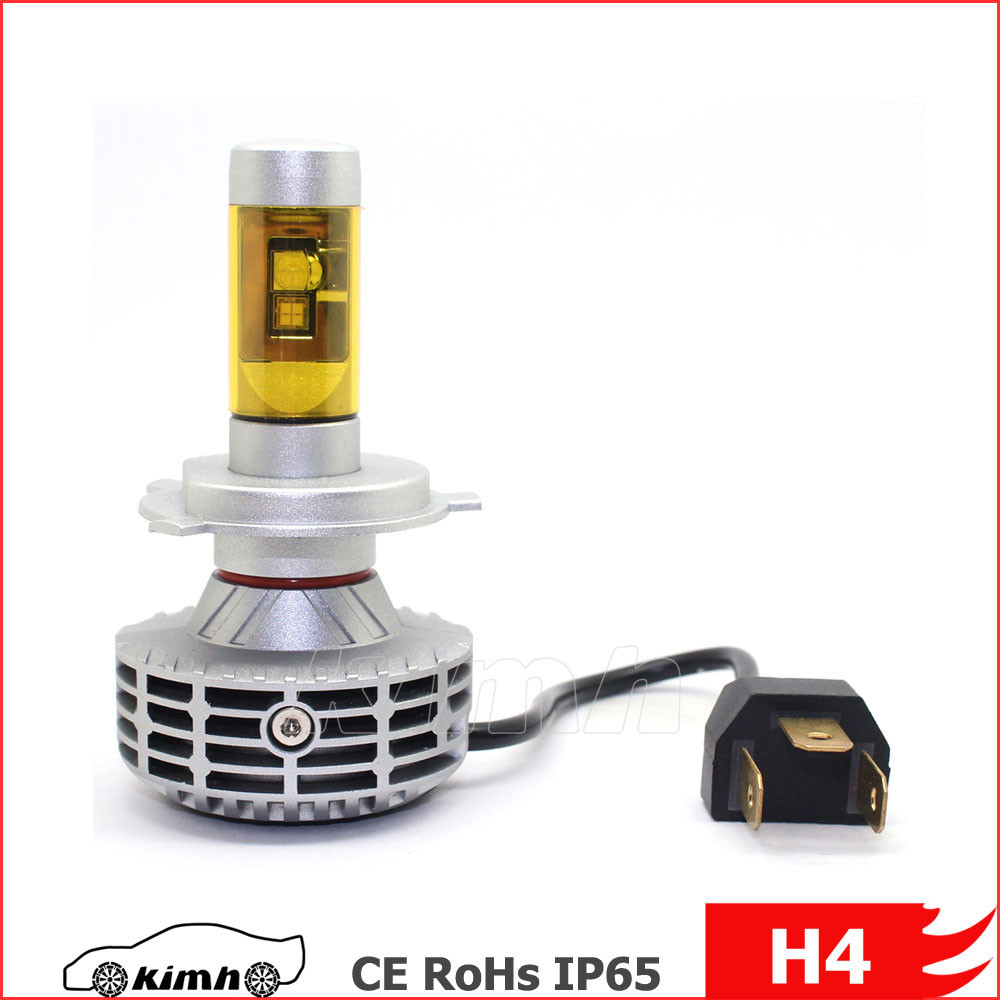

Model Number:KH-6HL-H4W led headlight bulb
Warranty:1 Years
Type:led headlight bulb
Wattage:30W / PC
Luminous Flux:3000LM/bulb; 6000 lumen/set
LED Color:3000K, 4300K, 6500K, 8000K, 10000K
LED Quantity:4 pcs * High Power LEDs
Beam Angle:360°
High Power LEDs:2pcs CREE XHP50 chips and 2 PHILIPS chips
Waterproof:IP65
Input:1.8A±0.2A
Applications:ATV/UTV, Motorcycle, Fog Light, Headlight, Snowmobile etc.
Production Description:
H4, H13, 9004, 9007, H7, H8, H9, H10, H11, H16, 9005, 9006 led headlight bulb
led headlight bulb
Advatages:
1. Car LED headlight low beam use CREE XHP50 chips, high beam Philips MZ chips more than 3000LM/bulb. Best quality and super bright.
2. 360 degree Bilateral luminous, 5 colors available for customers DIY freely;
3. LED headlight with All in one fanless design With CANBUS, the body with powerful USA A380 Aluminum metal and no additional drive, easy install;
4. Car LED headlight with Wide voltage and constant current design, working voltage range 9-30v, smart constant current IC protect the chip always safety working.
5. Low voltage protection, high precision constant current driver chip;
6. Simple modifications, without any change for your car, Intact install play and plug;
Product Description led headlight bulb
led headlight h4
| Type | LED headlight Replacement Bulb |
| Voltage | DC 12V-24V |
| Wattage | 30W / PC |
| Luminous Flux | 3000LM/bulb; 6000 lumen/set |
| LED Color | 3000K, 4300K, 6500K, 8000K, 10000K |
| LED Quantity | 2 pcs CREE XHP50 chips and 2pcs philips chips |
| Beam Angle | 360°
|
Unique Design
| Fanless |
| Input (A) | 1.6A±0.2A |
Working temperature
| -40鈩儈+150鈩?/span>
|
| Waterproof | IP65 |
| Car Make | all cars |
| Applications | ATV/UTV, Motorcycle, Fog Light, Headlight, Snowmobile etc. |
| Lifespan | More than 50000 hours |
| Warranty | 12 Months |
Available model:
| Hi/low beam: H4, H13, 9004, 9007;
Single beam: H7, H8, H9, H10, H11, H16, 9005, 9006 |
| KIMH Best quality+best service+best price=Long business! | As the good quality of our high lumen car LED headlight, it's almost less than 0.05% defective rate. We do want long business, not once business! So we will keep the best quality for you!
|
led headlight bulb
led headlight bulb
Low beam use CREE XHP50 chips:
The latest technology in 2015 from CREE, the light output is twice of X Lamp XM-L2 but with same dimension; suitable for high temperature; Spherical optics design for low beam light to maximize the light output with the anti-dazzling screen; 120 degree ultra wide angle with obvious light pattern, keeping the driving on the opposite from being dazzled and is more safe.
led headlight bulb
High beam Philips MZ chips:
Only 3.76×3.53mm luminous area, more compact beam angle, excellent beam control and higher lumens of 50000Lux,when used for high beam lights, the beam is concentrated, no diffuse and long distance.
led headlight bulb
Wide low beam: Wide range lighting, further illuminating on the right, and small distance for the return on the left to insure the safety.
Longer distance by high beam: High brightness, large lighting scale and long distance to be 300M.
led headlight bulb
1. Technology of thermal conductivity:adopt the brand-new Microheat pite technology, the coefficient of thermalconductivety is 20000 w/mK, which is times of copper(401 W/mK), 100 times of aluminum (220 W/mK), with extreme heat conduction efficiency to transfer the heat of light source to the radiator, so as to protect the light source, and prolong the life-span.
led headlight bulb
2. The heat dissipation technology: innovative heat dissipation design, adopt the design of air convection,each radiator gap has been calculated rigorously by heat transfer coefficient, which can maximize the contact with air, formed the convection, so as to achieve the purpose of good heat dissipation. By rigorous heat dissipation design, the radiating surface could reach up to 330681 mm to provide sufficient cooling for LED.
3. Thermal inaging of the radiator
Packaging & Shipping led headlight bulb
Company Informationled headlight bulb
led headlight bulb
Trade Info:
Payment terms : T/T, Western Union, PayPal, Escrow, MoneyGram.
Delivery Time : Within 2-5 business days.
Packing : Neutral Carton.
Shipping : By Sea, By Air and By Express Delivery.
FAQ led headlight bulb
Q. What G6 All in one fanless LED headlights of the chip brand?A: Our G6 All in one fanless LED headlight use CREE XHP50 chips or Philips MZ chips.Q: Which models are available for ULIGHT G6 led headlight?A: Single beam: H7, H8, H9, H10, H11, H16, 9005(HB3), 9006(HB4). Hi/low beam: H4, H13, 9004, 9007.Q: Does it have canbus function?A: Yes, The lights with CANBUS function or without CANBUS function as you like. We recommend that you buy more professional decoder if you install our lights are still get canbus problem. Q: What are wattage and lumen for G6 led headlight?A: The single beam is 25W with 2800LM per bulb, hi/low beam is 28W with 3000LM per bulb.Q: Which color is available?A: 3000K, 4300K, 6500k, 8000K, 10000K.Q: What is the highlight of G6 led headlight?A: Fanless All in one design, which makes you free from the noise of the car, Bulb size smaller will fit more cars and motorcycles.Q: Will it difficult for heat dissipation with fan?A: The special Copper tapes design is excellent for heat dissipation.Q: How’s lighting pattern?A: The lighting pattern is almost the same as OEM lighting pattern.Q: Are the headlights with standard size?A: All of our led headlights with the same base as the OEM headlights can replace the halogen headlights directly. Q:.How about the warranty? A:Our led headlight has 12 months warranty. And if the problems are not caused by man-made or natural disaster, we will send new ones with your next order after getting pictures and videos or your wrong products. led headlight bulb How to place an order?1. Email us the model, and quantity, consignee information, shipping way and payment terms.2. Invoice made and sent to you.3. Complete Payment after confirmed the PI.4. Confirm Payment and arrange production.5. Send goods in 2-5 days(according to the storage status).6. Send the tracking number or B/L(by sea). 7. Goods delivered, welcome re-orders!Our aim is to offer the good quality curved led light bar with competitive price for you! Thanks. ----Kimh Auto Light led headlight bulb Your questions will be very welcome, please feel free to contact us. Thank you very much!
