Product Attribute:
Supply Ability:50000 Piece/Pieces per Month
Production Description:

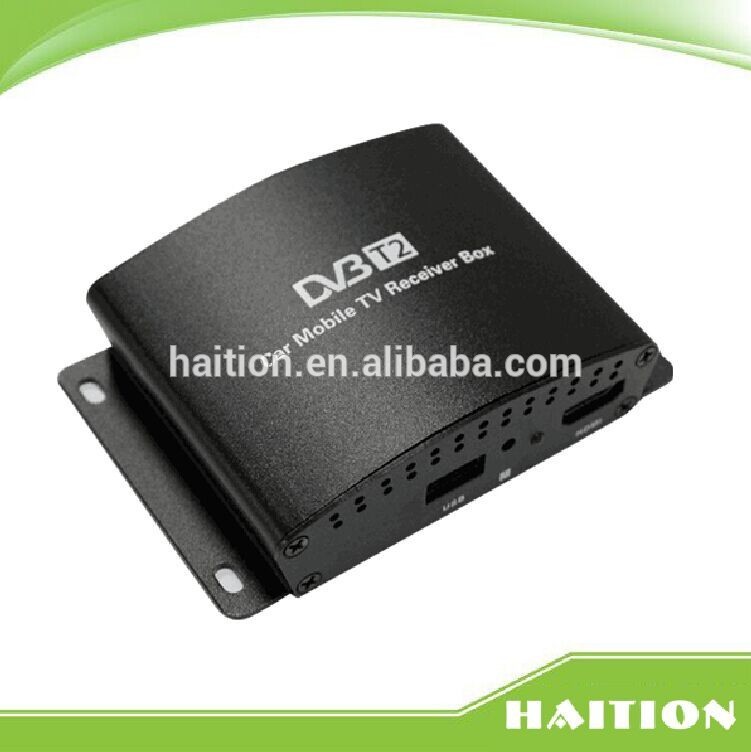

smart tv box DVB T2 with ful HD and double antenna can work when speed in 180km/h
you can watch tv in car without wifi ,
and no affected when car in 180km/h.
Fully compliant with ETSI EN 302 755 ( DVBT2 ) /ETSIEN 302 744(DVB-T)standard
Product Description
Technical Parameters:
Model Number | DVB-T2 |
Antenna | 2*25db |
Band width | 6/7/8 MHZ |
Reception frequency | VHF:174MHZ-230MHZ UHF:474MHZ-860MHZ |
Hardware Interface | Receiver/ USB2.0/HDMI1.3/ wire harness/RF connector |
Video Resolution | 576i, 576p, 720p, 1080i, 1080p |
Audio Standard | ISO/IEC 14496-30 AAC AAC+ |
FFT Mode | 1K, 2K, 4K, 8K, 16K, 32K |
Pilot pattern | PP1-PP7 |
Guard Interval | 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 |
RF sensitive | -83dbm |
Size(mm) | 110*80*30(mm) |
COFDM Modulation | QPSK, 16QAM, 64QAM, 256QAM |
Power supply | 6-36V |
Power consumption | 2W |
Body color: | customize (default black) |
OSD Language: | Multi language (default English) |
HD | yes |
Romote control | yes |
Touch screen control | yes |
MPED4 | yes |
·Multi-language menu,subtitle and audio output supported
·USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
User manual
·Support MPEG-1,MPEG-2,MPEG-3,MPEG-4,H.264decoder1920*1080p)
·Auto and manually scan all available TV and radio channels
Packaging & Shipping smart tv box DVB T2 with ful HD and double antenna can work when speed in 180km/h
Unit Packing Size | 240mm*190mm*50mm |
pcs/ctn | 20pcs |
Carton box size | 500mm*360mm*260mm |
Unit Weight: | 0.6kg |
Carton Weight: | 16.5kg |
Company Information
Shenzhen hengxun Runda Technology Co., Ltd. is a company focused on the development, production, sales and service in one of the car mobile digital products
With the wave of the global automotive propulsion, currently the company "Hengxun Runda" global brand management for mobile digital standards: DVB-T, DVB-T2, ISDB-T, CMMB, CTTB, ATSC, T-DMB, the products involved There: Car dvb-t2, auto motive ignition power supply, and a series of automotive products.
After years of development has many domestic automobile production facilities and DVD navigation factory established long-term stable cooperative relations, the domestic market coverage of 70%. In the international market the company's products are exported to Europe, Southeast Asia, Australia, Russia, Japan and other regions, well received by overseas clients, to achieve a high growth rate of exports
Our Services
smart tv box DVB T2 with ful HD and double antenna can work when speed in 180km/h
·24 hours for one day, 6 days for one week on line to sevece for you completely.
·100% quanlity test for every product before delivery.
·12 mounths warranty for all products.
·Professional function test for every process
·Professional engineer supplies technology supporting.
·Export standard, safety and environmental packing.
