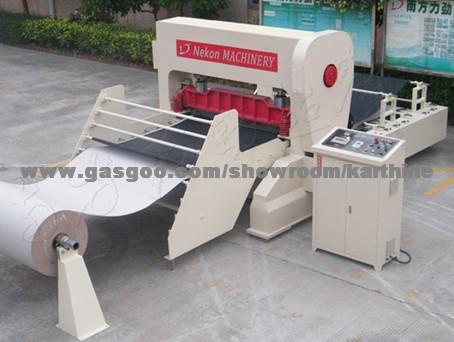

Mechanical Leather Punching Machines(Without Servo Motor)

Product Attribute:

Width:1.6m

Height:of moulds 25mm

Applicationt:

Daihatsu

Production Description:

Company Profile:
Kunshan Nekon Punching Machinery Ltd. is a branch of Kunshan Nekon Group which owns a variety of proprietary  intellectual property rights. Our company mainly manufactures numerically controlled leather punching machines,one-way vision punching machines,PU punching machines,PVC punching machines ,film screen punching machine,screen punching machines,foam punching machines,artificial leather punching machines,genuine leather punching machine,automobile cushion punching machines,upper punching machines,bags punching machines.Kunshan Nekon leather punching machines are mainly classified into four categories: Mechanical leather punching machines(Without Servo motor),Mechanical leather punching machines(With Servo motor),numerically controlled  leather punching machines,small leather punching machines.


Leather Punching Machine(Leather Perforating Machine) working principle:
Kunshan Nekon mechanically leather punching machines(Leather Perforating Machine) is called leahter punching machines (leather holes punching machines ) for shourt, mechanically leather puching machine is mechanically punching, which uses bent axle revolving to achieve loop movement, and punchign the holes on leahter,cloth,paper,foam,thin metal,PVC and other thin films.(samples following):


Leather Punching Machine(Leather Perforating Machine) TechnicalData:

ModelNK-CK155	Supply and voltage380V 50-60HZ
Height of moulds25mm	Ram pressure120ton
Air pressure6kg/cm2	Weight8500KG
Productivity28m/min	Rated power18KW
Machine size3220*1950*2000 mm	Paper shelf size2400*300*850mm
Feeding shelf size1950*1850*1450mm	Electricity box size850*500*1250mm
Rewinding shelf size2350*1850*1150mm	Power of main motor11KW
Power of rewinding electrical machine750W*5pcs	Paper shelf cylinder diameter80mm
The waste of electricity 8-10kw/hour	The biggest diameter of paper1400mm
The effective working width1.6m


Tolerance: within 1 mm
Max thickness that can punch: better less than 10 mm or 20 mm (There are two kinds)
Features of mechanical leather punching machine(Leather Perforating Machine):

•
  The leather punching machine applies advanced numerically controlled technologyelectrical technology and software technology.
  a.Numerically controlled technology is the core of advanced manufacturing technology, and develops towards high-speed,high-precision,multi-function,intelligentize,systematization and high reliability.
  b. For electrical technology of punching machine, Nekon leather Punching machine applies high-speed SOC singlechip, and achieves real-time control.
  c. For software technology, leather punching machine applies Man-machine interface, simple operating and reliable running.
• Mechanical Features of  leather punching machine(Leather Perforating Machine):
  a. Drawing-back treatment of punching machine
  b. The spindle of punching machine applies 10m big lathe, and host machine is formed by planer type milling machine.
  c. Leather punching machine is 8.5ton, and that can effectively assure the stability of machine.
  d. Rewinding of leather punching machine applies magnetic powder separation and reunion , that assures the accuracy and tidiness of rewinding.
  e. The pillow of leather punching machine applies copper bush structure of  high-speed punching, that assures accuracyhigh-resistance,lubrication.
  f. Leather punching machine applies recycling cooling oil to sure lubrication, bring down the temperature.
• Other Features of  leather punching machine(Leather Perforating Machine):
  a.The leather punching machine can punching and embossing.

Punching flower forms picture  warming embossing mould   warming embossing picture
b. Effective production, high-speed, it applies to batch production.
c.Decorative patterns are variety and beautiful.


Operating manual of Leather punching machine(Leather Perforating Machine):
Material feeding:

Please put material on feeding shelf, pull to the part of punching on  spindle shelf, stick with rubberized fabric, and level the material.



Start:

Open the start button and other relative buttons on control panel, and it runs.
Connect the electricity.
Open the general switch and other control switches on electricity cabinet.
Open the power switch and turn it on.
Set up punching parameters.
Open control switch of clean cylinder.
Set up manual /auto function.
Press auto running button and start the machine.

Feeding:

Adjust the speed of host machine of leather punching machine to do high-speed punching.
Material collecting:
