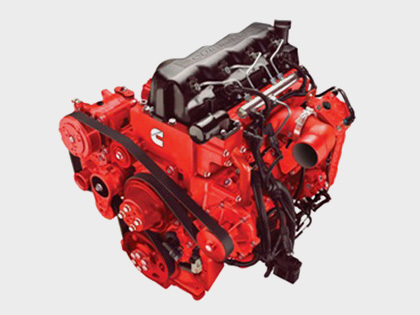

Foton Cummins Vehicle Engine ISF3.8 Series

Foton Cummins Vehicle Engine ISF3.8 Series

Typical Clients:  Cummins

OEM No/Model:  ISF3.8 3141

Market Type:  OE Market

PPM:  1000set/Month

Price Terms:  FOB

Delivery Port:  Shanghai

Other Price Terms:  EXW,CIF

Minimum Order:  1Set/Sets

Product Attribute:

Model:ISF3.8

Engine Displacement:3.8l

No. of Cylinders:4

Displacement:3.8l

Length:810mm

G.W:335kg

Width:695mm

Color:Red

Engine Type:Diesel

Cylinder Patterns:L

Valve Train:8

Injection Way:Petrol Injection

The Maximum Power Speed:2200rpm

Typical Clients:

Cummins

Production Description:

1.Cummins ISF3.8s 3141 Diesel Engine For Vehicle
Engine Model ISF3.8s3141
Bore*Stroke 102*115mm
Type 4 cylinder in-line
Displacement 3.76L
Net Weight 335KG
Engine Type Bosch high pressure common rai,
High-pressure fuel injection, SCR
Size 810*695*806mm
Technical Specification
Max Output 105KW
Horsepower 141HP
Torque 450N.m
Certification Euro/China III
Aspiration Turbocharged/Aftercooled
Peak Torque/ Speed (N.m/r/min) 1200-2200
No-load highest speed(r/min) 2950
Idling Speed(r/min) 750
Compression Ratio 17.2:1
Rated Speed 2600RPM

2.Cummins ISF3.8S 3154 Diesel Engine For Vehicle
Engine Model ISF3.8s3154
Bore*Stroke 102*115mm
Type 4 cylinder in-line
Displacement 3.76L
Net Weight 335KG
Engine Type Bosch high pressure common rai,
High-pressure fuel injection, SCR
Size 810*695*806mm
Technical Specification
Max Output 115KW
Horsepower 154HP
Torque 500N.m
Certification Euro/China III
Aspiration Turbocharged/Aftercooled
Peak Torque/ Speed (N.m/r/min) 1200-1900
No-load highest speed(r/min) 2950
Idling Speed(r/min) 750
Compression Ratio 17.2:1
Rated Speed 2600RPM

3. Cummins ISF3.8s 3168 Diesel Engine For Vehicle
Engine Model ISF3.8s3168
Bore*Stroke 102*115mm
Type 4 cylinder in-line
Displacement 3.76L
Net Weight 335KG
Engine Type Bosch high pressure common rai,
High-pressure fuel injection, SCR
Size 810*695*806mm
Technical Specification
Max Output 125KW
Horsepower 168HP
Torque 600N.m
Certification Euro/China III
Aspiration Turbocharged/Aftercooled
Peak Torque/ Speed (N.m/r/min) 1300-1700
No-load highest speed(r/min) 2950
Idling Speed(r/min) 750
Compression Ratio 17.2:1
Rated Speed 2600RPM

4. Cummins ISF3.8s 4141 Diesel Engine For Vehicle
Engine Model ISF3.8s4141
Bore*Stroke 102*115mm
Type 4 cylinder in-line
Displacement 3.76L
Net Weight 335KG
Engine Type Bosch high pressure common rai,
High-pressure fuel injection, SCR
Size 810*695*806mm
Technical Specification
Max Output 105KW
Horsepower 141HP
Torque 450N.m
Certification Euro/China IV
Aspiration Turbocharged/Aftercooled
Peak Torque/ Speed (N.m/r/min) 1200-2200
No-load highest speed(r/min) 2950
Idling Speed(r/min) 750
Compression Ratio 17.2:1
Rated Speed 2600RPM

5. Cummins ISF3.8s 4154 Diesel Engine For Vehicle
Engine Model ISF3.8s4154
Bore*Stroke 102*115mm
Type 4 cylinder in-line
Displacement 3.76L
Net Weight 335KG
Engine Type Bosch high pressure common rai,
High-pressure fuel injection, SCR
Size 810*695*806mm
Technical Specification
Max Output 115KW
Horsepower 154HP
Torque 500N.m
Certification Euro/China IV
Aspiration Turbocharged/Aftercooled
Peak Torque/ Speed (N.m/r/min 1200-1900
No-load highest speed(r/min) 2950
Idling Speed(r/min) 750
Compression Ratio 17.2:1
Rated Speed 2600RPM

6. Cummins ISF3.8s 4168 Diesel Engine For Vehicle
Engine Model ISF3.8s4168
Cylinders 4


Foton Cummins Vehicle Engine ISF3.8 Series
