Product Attribute:
Certification:ROHS
Applicationt:
Universal
Production Description:

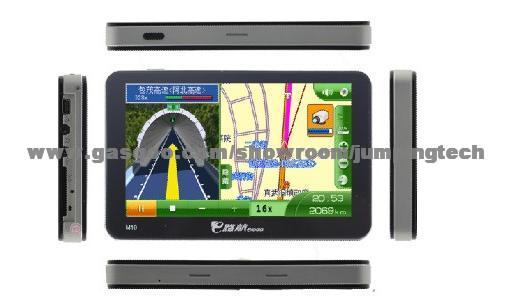

Primary Function: 5 inch high definition touchscreen GPS and multimedia unit
Display Information:
- 5 Inch TFT Touch Screen
- 800 x 480 Pixel Screen Resolution
Main System Information:
- CPU: MediaTek MT3351
- Frequency: 600MHz
- DDR SDRAM: 64 MB
- Internal Flash Memory: 64 MB
- External Memory (TF / microSD card support): up to 4GB (free 2GB SD card included)
- Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
GPS Information:
- Receiver Module: Atlas IV
- Frequency: 1.57542GHZ
- C/A Code: 1.023 MHZ chip rate
- Signal Channels: 48
- Tracking Sensitivity: -161dBm
- Position Sensitivity: 10m, 2D RMS; 2m, 2D RMS, WAAS enable
- Speed Rate: 0.1m/s
- Data Update Rate: 1Hz
- Recapture Time: 0.1s on Average
- Hot Startup Time: Less than 2s
- Warm Startup Time: 32s on Average
- Cold Startup Time: Less than 35s
- Maximum Position Altitude: 18,000 m
- Maximum Speed Rate: 515m/s
- Built-in Antenna Type: Built-in active ceramic antenna
- Built-in Antenna Voltage: 3.3V +/- 5%
- Built-in Antenna Current: 15mA
- Interface: Touch Screen
- GUI Interface: YES - 3D type
- Maps: via TF/microSD card
- Voice: YES
Bluetooth Information:
- Pair with phone - then use touchscreen interface
- Dial call
- Answer call
- Volume control
- Touchscreen keypad
Battery Information:
- Rechargeable Built-in Lithium Ion (LI-ION)
- 1600 mAh
- Normal Use: 3-4 hours
- Standby Mode: 150 hours
On Board Buttons and Slots:
- Power
- TF/microSD Card
- Mini-USB
- 3.5 mm (headphones)
- Built-in MIC
- AV IN
- HiFi Speakers
- Pen Stylus
Menu Features:
- Navigation (initiate GPS)
- Multimedia (Video, Music)
- Bluetooth (Phone Book, Call History, Dial Pad, Messages, File Manager, Settings)
- Photo (photo browser)
- EBook (text reader)
- Game (an assortment of fun games)
- Tools (Calculator, Unit Convert, Calendar)
- Setting (Volume, Date/Time, Backlight, Calibration, FM Transmitter, Language, System Info)
File Formats Supported:
- Video: True MP4 (H.264/MPEG-4 AVC), AVI, WMV, 3GP, FLV
- Music: MP3, WMA
- Photos: JPEG, BMP, GIF, PNG
- EBook: TXT
OSD Menu Languages:
- English, German, Portuguese, Italian, French, Spanish, Greek, Hungarian, Russian, Polish(Note: Actual GPS voice and display languages depends on your GPS software package)
Power Source: Rechargeable Lithium Ion battery (LI-ION)
Certifications: CE, FCC, RoHS
Dimensions: 125 mm x 80 mm x 13 mm (L x W x H)
