Spiral Wound Gasket 304/304+Graphite/304[e-Catalog]

Product Attribute:

Standard or Nonstandard:Standard

Applicationt:

auto

Production Description:

Product Details:

Place of Origin	Zhejiang, China (Mainland)
Brand Name	Jinshan
Model Number	JSD-2003
Material	Metal
Shape	Flat Gasket
Standard or Nonstandard	Standard
Name	spiral wound gasket
Type	Gasket Matallic Spiral Wound
Sealing gasket	with inner & center ring
Material	304/304+Graphite/304

Detailed Product Description
1.Spiral wound gasket manufacturer
2.ISO & MTC supplier
3.Best quality & better price & Quick delivery

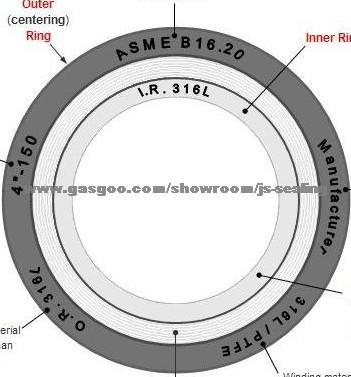

spiral wound gasket with outer ring is also called SWG with centering ring.

It is the most common profile of spiral wound gasket and used extensively in ANSI B16.5 Flanges.

The gasket consist of a metal guide ring and the basic SWG sealing  part.

The external ring accurately centers gasket on flange face,provides additional radial strength to prevent blowout and avts as a compression stop.This profile is normally used in raised and flat faced flange.The outer ring is often made of carbon steel(painted on zinc plated to prevent corrosion)\304\316\316L etc.

Jinshan company can produce according to ASME,BS,JIS and EN(DIN) standard or client request.
