Product Attribute:
Type:Headlight
Voltage:12V
Lamp Type:LED
Certification:CE ROHS IP67
Car Make:Universal
Place of Origin:Guangdong China (Mainland)
Brand Name:Chinyun
Model Number:CY-B120CF
Warranty:5 Years
Color Temperature:6000K
LED Power:120W
Lumen Flux:10200lm
Input Voltage:9-32V DC
Material Type:Diecast Aluminum Alloy
Beam Pattern:30 degree Spot/60 degree Flood/Combo
Body Color:Black, White, Camouflage
Other:Waterproof, shockproof, anticaustic
Product Name:Best off road lights bar
Dimensions:21.5"
Production Description:

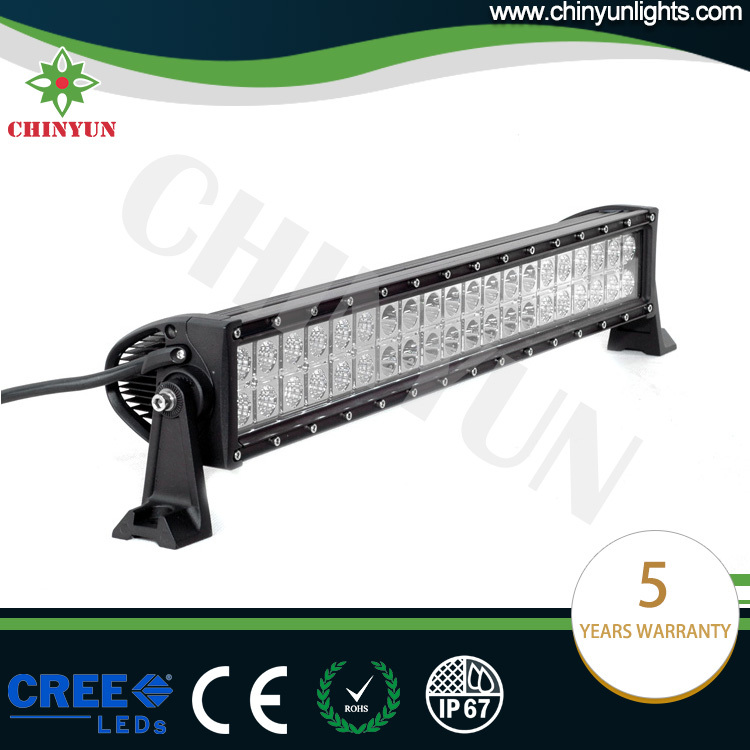

Best price LED off road lights bar 21.5inch 120w double row led light bar
LED Power: 120W 10200LM
Operating Voltage: 9-32V DC
40pcs*3w high intensity CREE LEDs
Waterproof rate: IP 67
Color Temperature: 6000K
Material: Diecast aluminum housing
Lens material: PC
Mounting bracket: Alu firm bracket
Bracket: Fixed bracket
Body Color: Black/White/Camouflage
Beam: 30degree Spot/60degree Flood/Combo
30000 hours above life time
Dimensions: 21.5 inch
Certification: CE/RoHS/IP67
Wide operating voltage range: it can apply to different types of trucks,cars and other vehicles |
Different power and product sizes optional to install in different place |
Two kinds of brackets optional, easy to install |
Different light pattern for your choice: flood beam or spot beam or combo |
Light: softer light to prevent glare |
The thickening reinforcement of PC lens, not easy to scratch scrape marks |
Aluminum casing, shockproof and waterproof better |
Longer life span, lower cost, lower energy consumption, environmentally friendly |
Waterproof and anti-caustic: it can work in the rain or any harsh environments |
The Whole line for model Chinyun F series best off road lights bar:
F Series - Dual Row - CREE led light bar: 36w;72w;120w;180w;240w;288w;300w
Model: | CY-B36CF | CY-B72CF | CY-B120CF | CY-B180CF | CY-B240CF | CY-B288CF | CY-B300CF |
Size: | 7.5” | 13.5” | 21.5” | 31.5” | 41.5” | 50” | 52” |
Wattage: | 36w | 72w | 120w | 180w | 240w | 288w | 300w |
Volt(DC): | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC | 9-32V DC |
Lumen: | 3060LM | 6120LM | 10200LM | 15300LM | 20400LM | 24480LM | 25500LM |
Chip: | Cree | Cree | Cree | Cree | Cree | Cree | Cree |
LEDs: | 12pcs | 24pcs | 40pcs | 60pcs | 80pcs | 96pcs | 100pcs |
Color Temperature: | 6000K | 6000K | 6000K | 6000K | 6000K | 6000K | 6000K |
Waterproof Rate: | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Lens: | PC | PC | PC | PC | PC | PC | PC |
Body Color: | Black/White/Camouflage | Black/White/Camouflage | Black/White/Camouflage | Black/White/Camouflage | Black/White/Camouflage | Black/White/Camouflage | Black/White/Camouflage |
Beam Pattern: | Spot/Flood/Combo | Spot/Flood/Combo | Spot/Flood/Combo | Spot/Flood/Combo | Spot/Flood/Combo | Spot/Flood/Combo | Spot/Flood/Combo |
Operating Temperature: | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> | -40鈩?/span>~85鈩?/span> |
Life time: | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs | >30000hrs |
Certification: | CE, IP67, RoHS | CE, IP67, RoHS | CE, IP67, RoHS | CE, IP67, RoHS | CE, IP67, RoHS | CE, IP67, RoHS | CE, IP67, RoHS |
Applications for led light bars and work lights:
