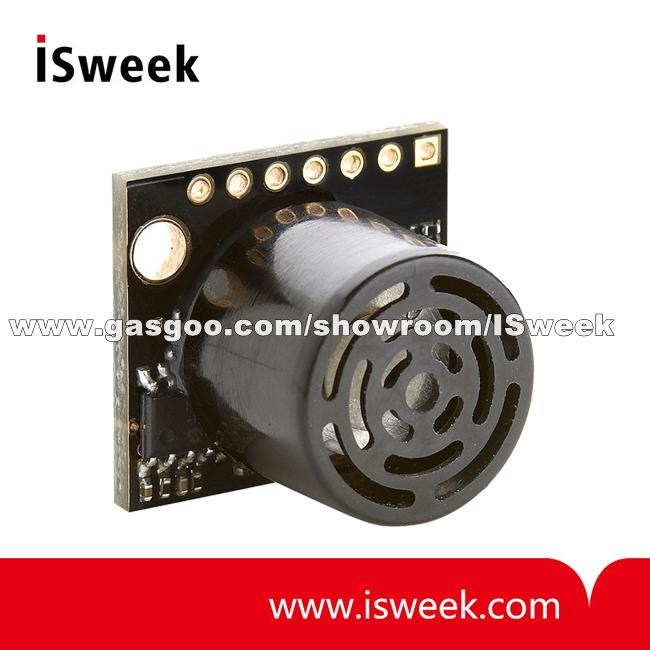

MB1003 HRLV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder

MB1003 HRLV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder

Application:  other

Market Type:  After Market

Maximum Prodcution Capacity:  3000 Pcs/Month

Delivery Time:  5~7 Work Days

Place of origin:  United States

Price Terms:  FOB

Delivery Port:  HK

Minimum Order:  1Piece/Pieces

Product Attribute:



Production Description:

MB1003 HRLV-MaxSonar-EZ0
High Performance Ultrasonic Rangefinder

MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Description
The HRLVMaxSonarEZ0 has the widest and most sensitive beam pattern of any unit from HRLVMaxSonarEZ sensor line. This makes the HRLVMaxSonarEZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.

MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Specifiations
Resolution of 1mm
10Hz reading rate
Internal temperature compensation
Cost-effective solution where precision range-findings are needed
Sensor component allows users to lower the cost of their systems without sacrificing performance
42kHz Ultrasonic sensor measures distance to objects
RoHS compliant
Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
Maximum range of 5000 mm (195 inches)
Tolerates outside noise sources
Operates from 2.5V-5.5V
Low 3.1mA average current requirement
Small, light weight module
Designed for easy integration into your project or product
Operational Temperature from 0C to +65C (+32F to +149F)
Real-time automatic calibration (voltage, humidity, ambient noise)
Option external temperature compensation HRMaxTemp
Firmware filtering for better noise tolerance and clutter rejection
Widest beam of the HRLV-MaxSonar-EZ sensors
Great for people detection applications

MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Features and Benefits
Factory calibrated wide beam width
Low operating voltages from 2.5V to 5.5V
All range outputs are active simultaneously
High acoustic sensitivity
Detects small targets to longer distances
Widest beam width for the HRLV-MaxSonar-EZ sensors

MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Applications and Uses
People detection
Small target detection
High sensitivity applications
