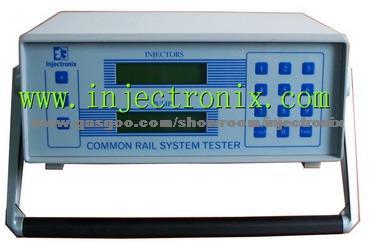

Common Rail System Tester CRS-1000

Production Description:

Common Rail System Tester CRS- 1000 simulates an engine ECU, To drive a solenoid on CR pump, Such as Bosch CP1/ CP2/ CP3, Delphi CRSP and Denso HP2/ HP3, And solenoids of 6 CR injectors. A standard high pressure pump test bench with a CR system tester CRS- 1000 will fulfill most tasks for repairing a CR system and the components, Such as injection quantities, Injector fuel return, Nozzle injection spray atomization, Pump condition and fuel rail pressure control.

Design Features
? Combine two independent modules for pump and injector control
? Pump driving signal - Adjustable duty cycle，while monitoring fuel rail pressure
? Injector driving signal - Adjustable frequency and pulse width
? Modulated driving signal to ensure the safety of the solenoids of the injectors
? Software based over- Pressure protection
? Short circuit protection for solenoid driving signals
Rich accessories, Ready to test Bosch, Denso and Delphi injectors and pumps
