Auto Air Brake Chamber T30/30DD

Product Attribute:

Supply Ability:5000 Piece/Pieces per Month

Delivery Details:Within 15 days after receive TT deposit or LC

Production Description:

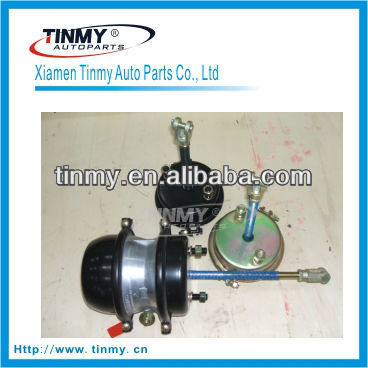

Auto Air Brake Chamber T30/30DD:
1.Single&Double Room Air Brake Chamber
2.High quality, good price.
3.Factory Certif:TS16949



Xiamen Tinmy Auto Parts Co., Ltd, which belong to Tinmy  group, is a leading

supplier in auto  parts  that organized by several factories  and  joint-ventured

manufacturers which successfully certified with TS16949 and ISO9001/2000 quality  control system.







Item No.	Stroke	R1	R2	L1	L2	L4	Push Rod Thread	Air Inlet Thread	Mounting Bolt Thread	Weight
	mm	mm	mm							kg
TMC-T09	44.5	87	68	104±5	106±5	130±3	1/2"-20UNF	1/4"-18NPTF	7/16"-14UNC	1.9
TMC-T12	44.5	125	105	104±5	160±5	130±3	1/2"-20UNF	3/8"-18NPTF	7/16"-14UNC	2.3
TMC-T16	57	107	83	109±3	163±5	160±3	1/2"-20UNF	3/8"-18NPTF	7/16"-14UNC	3
TMC-T20	57	11	88	84±5	240±5	200±4	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	4
TMC-T24	64	116	93	123±5	240±5	206±4	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	4.1
TMC-T30	64	125	105	123±5	285±5	255±4	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	4.8





Item No.	Stroke	R1	R2	L1	L2	L4	Push Rod Thread	Air Inlet Thread	Mounting Bolt Thread	Weight
	mm	mm	mm							kg
TMC-T2024	64	110	88	220±5	75±5	50±4	M16*1.5	M16*1.5	M16*1.5	7.78
TMC-T2424	64	116	93	224±5	240±5	206±4	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	8.1
TMC-T2430	64	163	184	234±5	240±5	206±4	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	9.2
TMC-T3030	64	125	105	238±5	285±5	255±5	5/8"-18UNF2A	3/8"-18NPTF	5/8-11UNC2A	9.5
