Product Attribute:
Place of Origin:Guangdong China (Mainland)
Brand Name:LINTECH
Model Number:LM-070M-A
Type:Interior Mirror
Function:rear view car backup mirror
Product name:car mirror monitor
Screen Size:4.3 inch
price:factory price
ODM:Yes
Contrast ratio:300:1
Color System:PAL/NTSC (AUTO)
Screen Type:4:3
car makes:all vehicles
Warranty:18 months
Certification:CE,FCC,Rohs
Production Description:

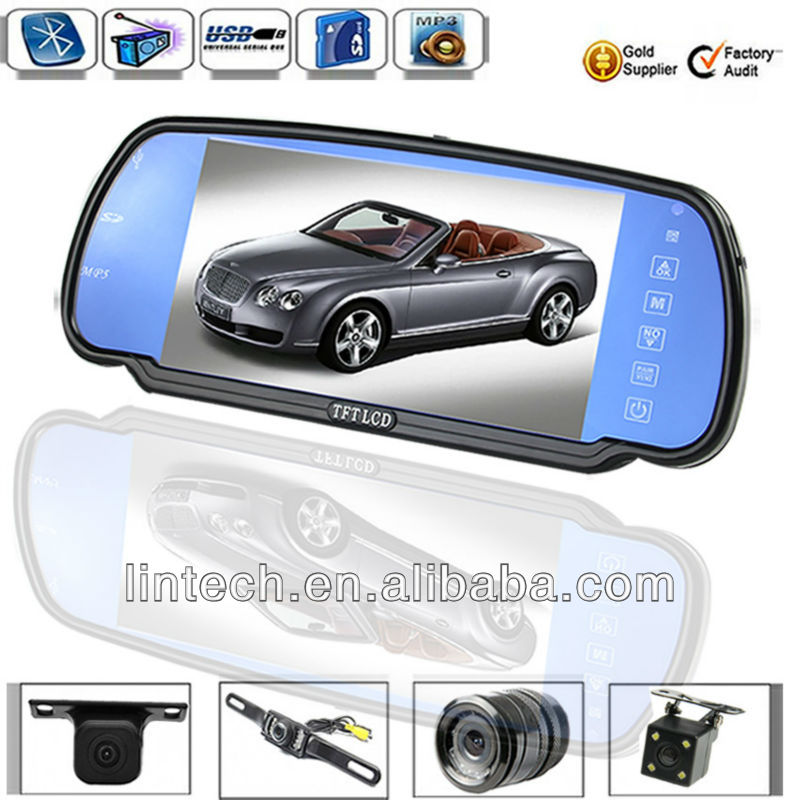

Car mirror monitor with bluetooth,MP4,MP5,Tounch Key and SD card insert function
car mirror monitor
rear view mirror car monitor
bluetooth car rearview mirror monitor
The driver of large earth moving machinery vehicle has very little visibility of the area around his vehicle. The blind spot areas to the front and rear of the vehicle are the most dangerous areas. The blind spot is the area around the vehicle that is not visible to the driver and the space that other road users and obstacles could occupy.
Main Features of car mirror monitor:
1.7 inch 16:9 Wide screen
2.MP5 player, support SD/MMC, U-disk up to 8GB
3.FM audio output for high quality sound from your car stereo FM system
4.2 channels video inputs: Video 1 & Video 2 input
5.Full function Remote control and sensitive touch keys on mirror LCD
6.Automatically activates camera mode when shifting into reverse
7.Looks like an ordinary mirror when monitor is not in use
8.Monitor will hook up to your mobile video DVD system, and you can use the mirror monitor to watch DVDs and 9.for rear view camera Easy installation without damaging to any parts of the car, only clip the monitor
10.Replacement fitting fully keeps the originality of your car
11.Unique metal arm with tight fitting and changeable for most popular cars
12.Special anti-glare mirror with perfect visibility
13.The mirror is safety installed in the monitor
Model No.: LM-070M-A :
Display screen:7 inch , it is safe for your car reversing
TFT-LCD digital high definition
Sreen pixels:480(H)*RGB*234(V),high definition
Display formate: 4:3
Power Consumption: less than 2W,not heating
Powersupply: DC 12V, original car standard power supply
Two ways video input
PAL/NTSC/AUTO are optional,compatible all signals
Brightness :300 cd/square meter
Contrast:300:1
Universal car back up monitor for all cars
Features of universal LED light rear view camera:
♦ Model No.: LC-04 LED
♦ Suit for all kinds of cars.
♦ With 4pcs LED light asistant
♦ Compact size
♦ Waterproof Rating IP68
♦ It is easy install for universal vehicles
Specifications of night vision car camera Model N0.:LC-04LED |
Image Sensors | Color PC1030 |
TV System | NISC/PAL |
Effective Pixels | NTSC656 X 492 |
Electronic shutter | 1/60~1/20,000sec |
Resolution (TV Lines) | 420 |
Minimum illumination | 0.1 Lux / F1.2 |
Horizontal Sync.Frequency | 15.625KHZ |
Vertical Sync.Frequency | 60 Hz |
Video Output | 1.0vp-p75 ohm |
Gamma Consumption | 0.45 |
AGC | Auto |
BLC | Auto |
Night Vision | Yes |
IP Rating | IP68 |
S/N ratio | Better than 48dB |
Lens | F=1.6 |
Current Consumption(Am) | 170 |
Power Supply(DC V) | 12 |
Operating Temperature(Deg.C) | 20~ +70 degrees , RH95% Max. D46 |
Storage Temperature | 40~80(RH95% Max.) |
The diagram Insatalling car mirror monitor and camera :
7 inch Car Mirror Monitor system Standard Packing Contents: |
- 1 x 7" Mirror Monitor |
- 1 x Remote Controller |
- 1 x Convert Cable |
- 1 x User Manual |
- 1 x Rear view Camera (Optional) |
...
