Production Description:

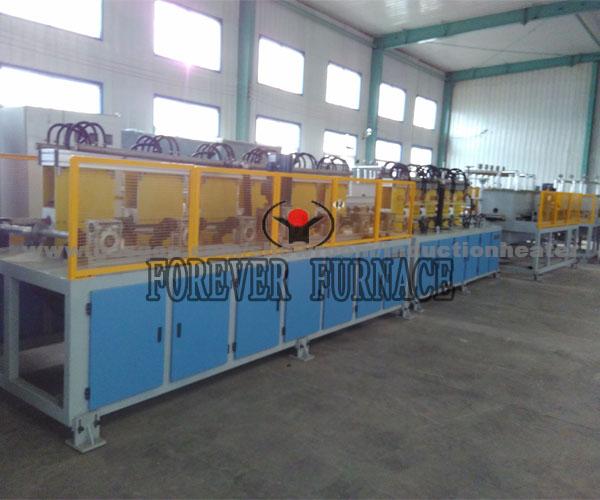

Steel bar hardening and tempering equipment, steel bar hardening and tempering line,steel bar heat treatment furnace designed and manufactured by Forever Furnace from China is used for steel plant.With 16 years of experience in the field of induction heating equipment,Forever has provided hundreds of steel bar hardening and tempering equipment,steel billet reheating furnace,steel bar preheating equipment for steel bar forging and so on.Our experienced engineer will give you cost-effective heat treatment solutions according to your material size and processing requirement.Your specific inquiry will receive our great attention!
Steel bar hardening and tempering equipment process
1.Automatic Feeding System: The workers put the steel bars on the storage rack and sort well,then the automatic feeding system will transmit the bars to the parallel roller.
2.Induction hardening:With stable running speed of the driving system,the transmission system will deliver the steel bars into the induction heater.The infrared thermometer will monitor and control the steel bar temperature automatically in the processing of preheating--temperature measurement--warming up--temperature measurement.After bar temperature reaches to the target quenching temperature, they will be cooled in the cooling device.Then the transmission system will deliver bars to the feeding system to wait for next heat treating.At the same time,the hardening rejection will be isolated.
3.Tempering System:The steel bars after hardening processing will be transmitted to the induction heaters for reheating to the target temperature under the infrared thermometer control.Then the steel bars will enter the cabinet to preserve heat.After delaying the heat preservation time,the straightened bars will be delivered to the parallel rollers.
4.Automatic Discharging System:The bars will be transmitted to the discharging system for natural cooling.
5.Inspection and Storage.
Performance Features:
1.We can supply the complete set including the automatic feeding system,transmission system,quenching system,cooling system,tempering system and automatic discharging system, IGBT power supply and PLC whole process control.
2.The transmission speed is adjustable,so our equipment can satisfy customer requirement in different production rate.
3.To ensure the stability of the product quality,we control the whole processing temperature strictly with the high accuracy and non-contact infrared thermometer.
4.With the tension monitor and control device for the steel bar production line,we can do the induction heat treatment in the constant micro tension condition.
5.The performance is reliable and the maintenance is convenient.
Forever Furnace customer Commitment:
1.The service mode of 1+2,that is one sales person and one after-sales person will serve you once you buy our steel bar induction heating equipment.
2.Provide local installment instruction and adjustment free of charge.Responsible for the training for the technician and operator.
3.The whole technical document including the Electricity Schematic Diagram will be provided.
4.One year guarantee period,long term technical service and spare parts support.
Forever Business Principle:Customer satisfaction is our unremitting pursuit,try our best to reduce production cost and increase the production efficiency for our customers.Make you more competitive.
