ELM327 USB The Latest PC-Based Scan Tool

Applicationt:

auto

Production Description:

ELM327 USB

Description:

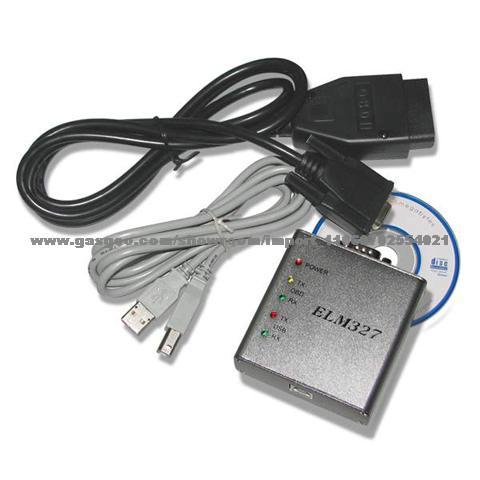

ELM327 USB is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM327 USB. The output protocol (connection to laptop) is USB.
Processor: ELM327 USB
OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your cars computer. The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computers hard drive, and youre ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
OBD-II Protocols:
- ISO14230-4 (KWP2000)
- ISO15765-4 (CAN)
- ISO9141-2
- J1850 VPW
- J1850 PWM
Output protocol: RS232
Baud rate: 9600 or 38400
Indicator Leds: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45 mA

The software supports two platforms-DOS and Windows.

The program lets you perform the following operations:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL (Check Engine light)
- Oxygen sensor voltages/associated short term fuel trims
- Display current sensor data, including:
- Absolute Throttle Position
- Intake Manifold Pressure
- Intake Air Temperature
- Calculated Load Value
- Short Term Fuel Trim
- Long Term Fuel Trim
- Coolant Temperature
- Fuel System Status
- Fuel System status
- Timing Advance
- Air Flow Rate
- Vehicle Speed
- Fuel Pressure
- Engine RPM
- Many others
