1. Both temp and current thermal protector for motors 2. Small size but big current capacity 3. accurate trip off time.

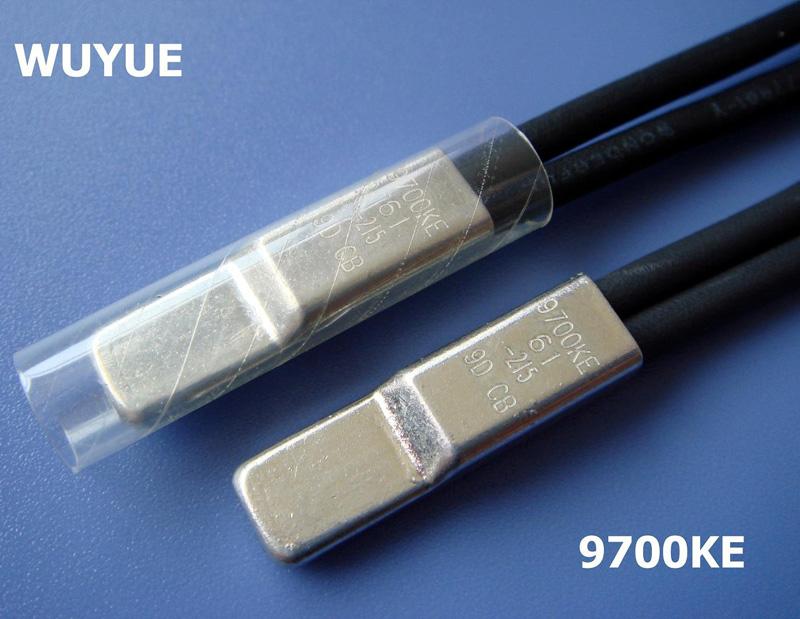

9700KE is a reliable and precise thermal protector with big capacity, small size and sealed steel housing. It can be easily mounted and widely used to many applications.?
* Special Features:
Both current and temperature sensitivity;Sealed housing to avoid leakage when? vacuum varnishing.?Accurate action temperature.The type and length of wire are optional
?
* Electrical Ratings:
18A / 24V DC13A / 250V AC18A / 125V AC
* Technical Parameters:
Action temperature range: 55-160Temperature tolerance: ±5
* Applications:
Solar heaters or heating elementsMotor and batteryElectronic ballast and lightingElectrical tools, chargers, transformers
