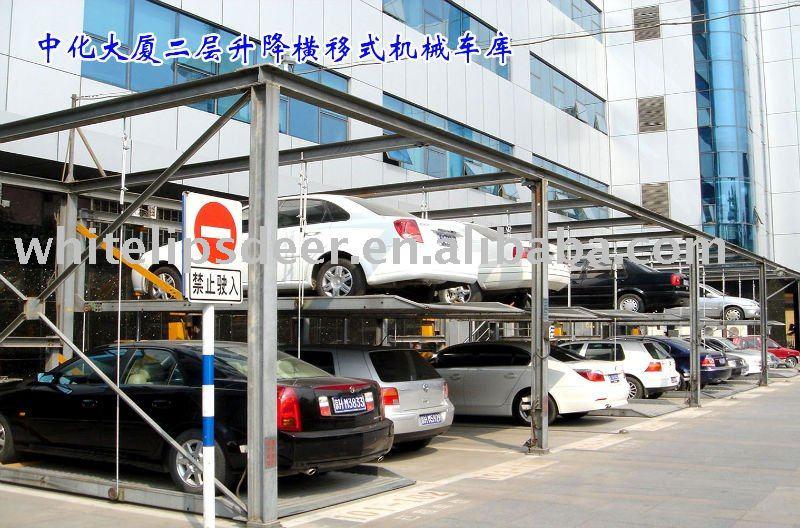

Product Name: STM-210 double-deck puzzle (puzzle parking system)
Performance parameter list
Driving
motor chain
Electromotor
up-and-down:3HP(2.2KW) cross-sliding:1/2HP(0.37KW)
Speed
up-and-down:4m/min cross-sliding:8m/min
Operation
Button
Control
PLC logic programmed auto control PLC
power supply
Three phase five wire system 380V/50HZ 4KVA
security devices
caution device in operation
anti-falling device
emergency stop device
up-and-down limit protector
electric current overload protector
cross-sliding limit protector
entrance optoelectronic detector
up-and-down location button
auto wheel stop lever
power cut braking device
cross-sliding location switch
security interlock device
chain protective sleeve
over length detector
Physical Dimension Parameter List
suited autos
auto model
medium-sized
large-scale
Super huge
auto size(mm)
L×W×H 4700×1800×1450
L×W×H 5000×1850×1550
L×W×H 5300×1900×1550
auto weight(kg)
≤1500
≤1700
≤2100
requirement space
A(mm)
2300
2400
2500
B(mm)
5300
5600
5900
C(mm)
≥5550
≥5850
≥6150
D(mm)
≥7100
≥7400
≥7700
E(mm)
≥5150
≥5450
≥5750
F(mm)
D+ upright post width
Clear height
≥3600mm
1.P.L.C automation and simple operation.
2.Pressing platform numbers
3.automatically move
double-deck puzzle puzzle parking
