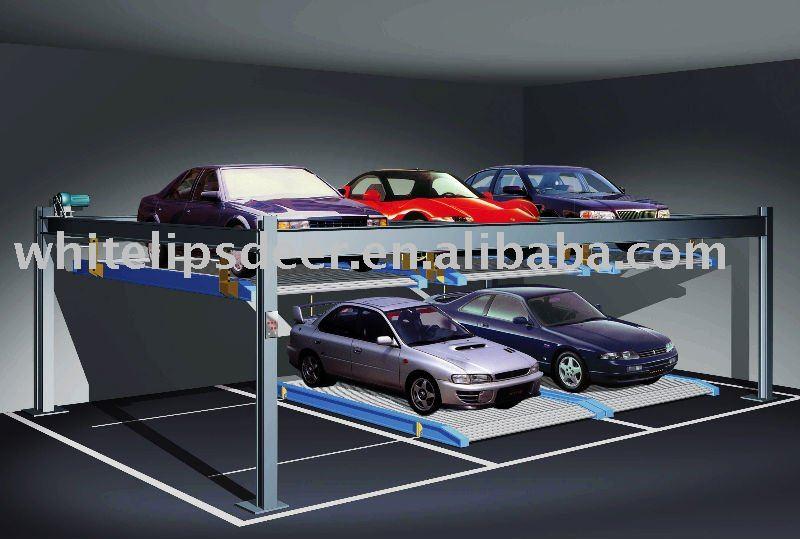

high quality STM-130 Triple Decks Parking System

Applicationt:

universal

Production Description:

Product Name: STM-130 Triple Decks Parking System ( lift/auto lift )

Physical Dimension Parameter List

suited autos

Model

medium-sized

large-scale

super huge

auto size(mm)

L×W×H 4700×1800×1450

L×W×H 5000×1850×1550

L×W×H 5300×1900×1550

Auto weight(kg)

≤1500

≤1700

≤2100

requirement space

A(mm)

2400

2500

2600

B(mm)

5100

5400

5700

C(mm)

N×A+400

D(mm)

(foundation-ditch depth)≥3800

                                                                                                                                                                                                                                                                                                                                                                                                                       Performance Parameter List

Driving

motor chain

Electromotor

5HP(3.7KW)

lift speed

2.4m/min   2/

Operation

Button

Control

PLC logic programmed auto control        PLC

power supply

Three phase five wire system   380V/50HZ 4KVA

security devices

Emergency stop device

Limit protector

Current overload protector

Power cut brake device

Entrance optoelectronic detector

Safety interlock

Auto wheel stop lever

Over length detector

Up-and-down location switch
1.have a top platform
2.a middle platform
3.a bottom platform
4.garage equipment
lift/auto lift
