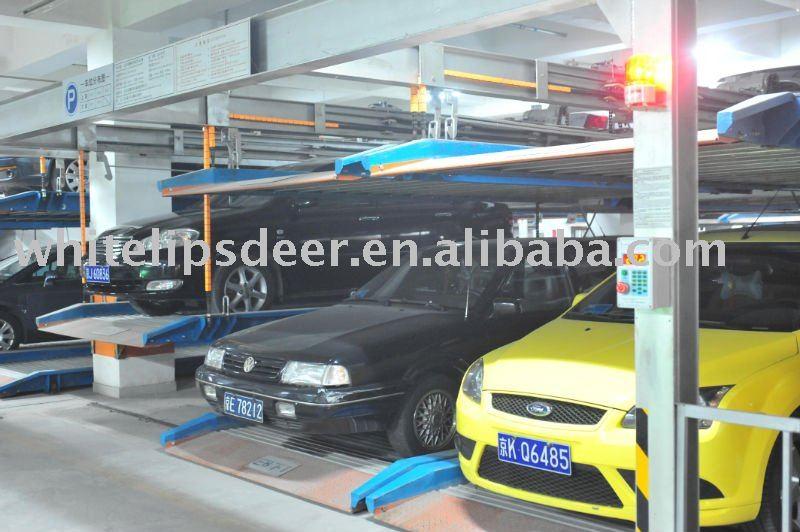

STM-210 PUZZLE 2-LAYER MECHANICAL PARKING SYSTEM
Performance Parameter List
Driving
Motor and chain
Motor
Lifting up-and-down: 3HP(2.2KW) Cross-sliding: 1/2HP(0.37KW)
Speed
Lifting up-and-down: 4m/min Cross-sliding: 8m/min
Operation
Button operation
Control
PLC Control
Power supply
Three phase five wire system 380V/50HZ 4KVA
Security Devices
Caution device in operation
Anti-falling device
Emergency stop device
Up-and-down limit protector
Electric current overload protector
Cross-sliding limit protector
Entrance optoelectronic detector
Lifting location button
Car wheel stop lever
Power off braking device
Cross-sliding location switch
Security interlock device
Chain protection sleeve
Over length detector
This model can be designed into triplet or decupled to make 5 parking spaces or 19 parking spaces.
Entirely steel structure
Suitable established in basement or underground car parks，and a basement clear height of 3.6 meters is required. Also suitable established outdoors, but a flashing board is required
Engineering Requirements Ground surface shall be reinforced concrete structure to fix equipment;Ground surface concrete shall be smooth, and the height difference should be within ±5mm; If equipment is established outdoors, a flashing board is required; A clear height of 3600 mm is required;Enough power resource is required during engineering period;
