Product Attribute:
Voltage:380v
Applicationt:
auto
Production Description:
Detailed Product Description and Operating Condition:

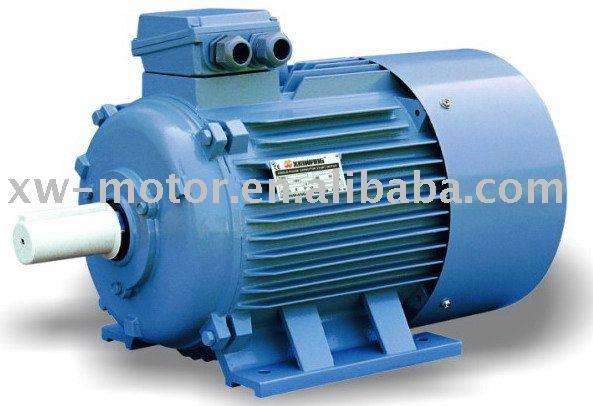

Adopting the national uniform design,Y2 series three-phase induction motors,are conformity with IEC34-1 and JB/TB680.1998 standards, also up to the international advanced level fo 90’s, as substitute of series induction motors.
1) Ambient temperature:-15<θ<40
2) Altitudine:not exceed 1000m
3) Rated voltage:380V or any voltage between 220V-760V
4) Rated frequency:50Hz/60Hz
5) Protection class: IP44/IP54
6) Insulation class:F/H
7) Cooling method:ICO141
8) Duty:S1(continuous)
9) Connection:Star-connection for up to 3kw, Delta-connection for 4kw and above
10)Remark:Motor can be equipped with PTC,for frame size 160 and above,also can be equipped with re-greasing system,Terminal box on top,right side or left side are available.Key-way can be closed type or opened type,side or left side are available,Key-way could be closed type or open type.
It possess sophisticated featuress such as new construction,good
appearance,slight vibration,low noise etc
