Product Attribute:
Voltage:380v
Applicationt:
auto
Production Description:

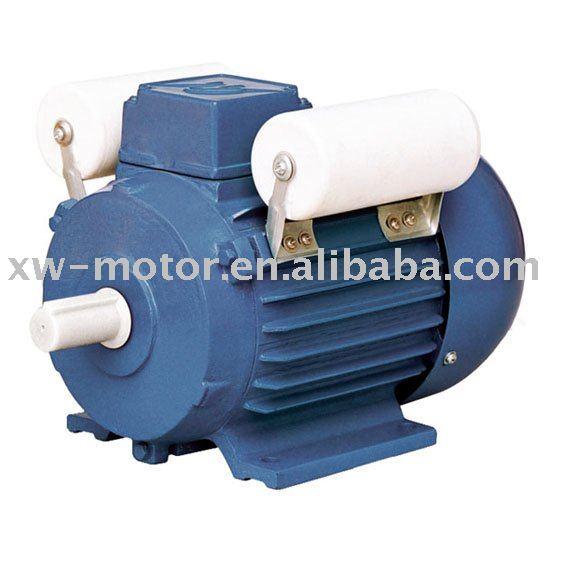

YL Series Single-phase two-value capacitor induction motor
YL series single-phase two value capacitor induction motor is designed and manufactured in accordance with state standard,with outstanding performance of starting and operation, low noise , compact dimensions , light weight , easy maintenance,etc.
These motors are widely used in air compressors,pumps,fans,refrigerators,medical instruments as well as small machines,etc. Especially for occasion where only single-phase power supply is available.
Operating conditions
1,Ambient temperature:-15°C<0<40°C
2,Altitude:not exceed 1000m
3,Rated voltage:380V or any voltage between 220V~760V
4,Rated frequency:50HZ/60HZ
5,Protection class:IP44/IP54
6,Insulation class:B/F
7,Cooling method:ICO141
8,Duty:S1(continuous)
9,Connection:Star-connection for up to 3KW,delta-connection for 4KW and above
10,Remark:Motors can be equipped with PTC,for frame size 160 and above , also can be equipped with re-greasing system. Terminal box on top ,right side or left side are available .Key-way can be closed type or opened type , side or left side are available. Key-way could be close type or open type .
YL Series Single-phase two-value capacitor induction motor.
