Applicationt:
Loudspeaker
Production Description:

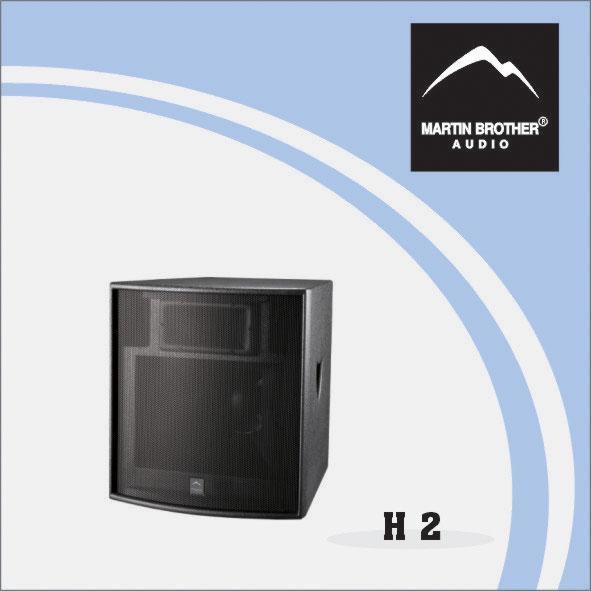

Pro audio H2 is an all-horn,very high performance mid-high loudspeaker system, professional loudspeaker, audio system
pro audio / audio / speaker / loudspeaker / pa speaker / professional speaker / pro loudspeaker / stage speaker / audio equipment / pa audio / pa system / speaker system
The Blankline Series H2 is an all-horn,very high performance mid-high pack for dance club and live music stages.It features an innovative 10" (250mm) mid-range horn with a unique 'phase-ball' loading device.This maintains the 70°x 40° directivity pattern of the mid horn up to 2kHz where a 1" (25mm) exit HF compression driver takes over.
TECHNICAL SPECIFICATIONS
Type: Two-way active/passive mid-high system
Drivers: 1x10"(250mm) mid driver,
1x 1" (25mm) exit HF compression driver
Frequency response: 150Hz-18kHz±3dB
Rated Power: MF/(MF+HF):300W, 1200W peak
HF: 60W , 240W peak
Impedance: MF/(MF+HF):8 ohms; HF: 8 ohms
Sensitivity: MF/(MF+HF):104dB, HF: 106dB
Maximum SPL: 127dB continuous, 133dB peak
Connector: 2 x Neutrilk NL4
Protective Grille: Black perforated steel
Dimensions: (W) 560mm * (H) 571 mm * (D) 496mm
Weight: 35kg
