Applicationt:
Auto
Production Description:

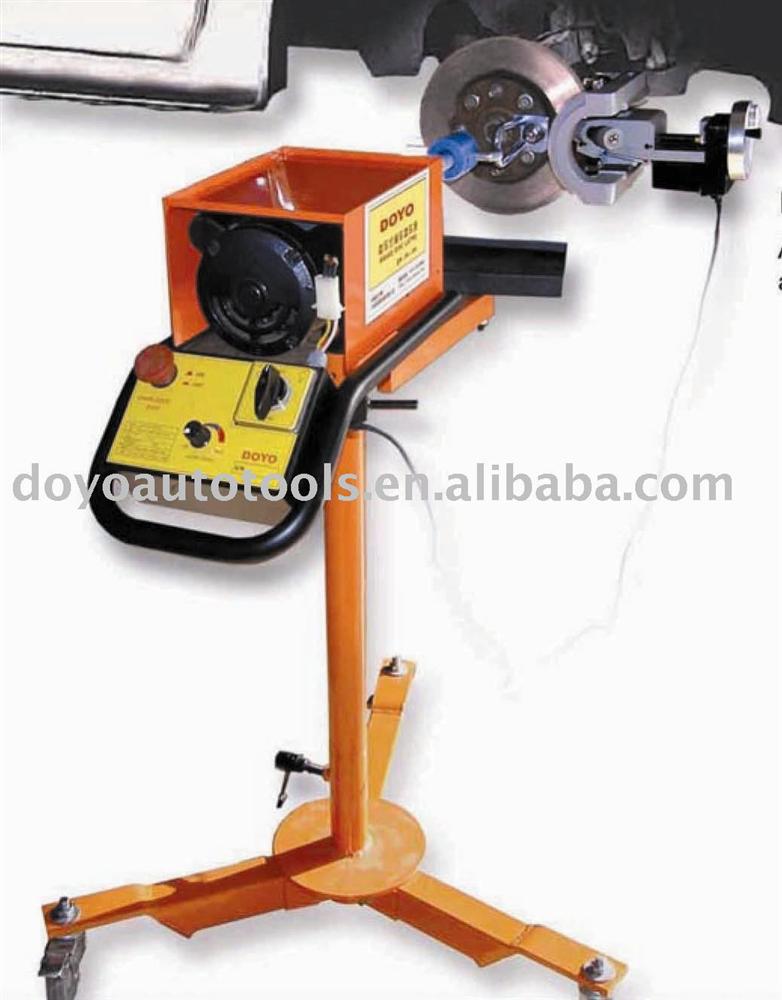

Suitable for lathing brake disc on car with adjustable feeding speed.
Feature
- Suitable for all vehicle with brake disc.
- Portable design and easy operation on car.
- High-precision micrometer.
- Both automatic feeding lathing and manual feeding lathing available.
- Adjustable feeding speed according to cutting thickness or raw materials of disk.
- Triangle cutter make one cutter can be used as three cutters.
- Automatic stop function after finishing feeding.
- Emergency stop available.
- Operating height adjustable.
Technical Data
Max disk thickness
38mm
Operating scope
Disk inside or outside direction 100mm
Wheel axial direction 60mm
Precision of micrometer scale
0.1mm
Lathed disk run-out
≤0.005mm
Surface finish of lathed disk
0.002-0.005mm
Driving motor
AC 220V 50/60Hz 300W 100/120rpm
Feeding motor
DC 6-17V 0-35rpm
Feeding speed
0-30mm/min
Operating height
600-750mm/1000-1150mm
Working temperature
-20--40 degree
Gross weight
58kgs
