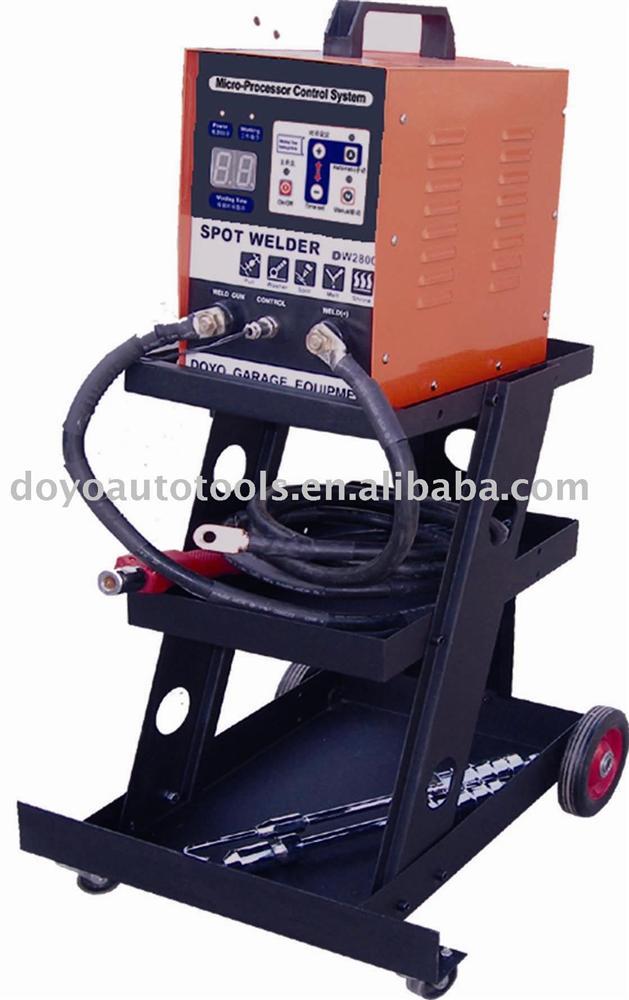

Spot Welder

Production Description:

This welder is specially used for car body repair with micro-processor control with digital display

Feature:

- Latest electronic components and micro-processor control with digital display.

- Solid state relay replaces AC contactor, getting rid of the after services of contact problems.

- 90V-270V wide voltage switch control power avoid the problems of control transformer.

- Touch film switch replacing key switch and turn switch make machine more reliable.

- Automatic control welding time adjustable at 0.1s-9.9s.

- Copper bolt output connector suitable for 2 or 3 welding guns being connected at same time.

Technical Data:

Model

DW-2800+

DW-8000

DW-8600

DW-8800

Output

6-11V 1500-4000A

6-11V 1500-4000A

5-9.5V 1500-5000A

4-8V 1500-6000A

Power supply

AC 220V 1ph or 380V 2ph

50/60Hz

AC 220V 1ph or 380V 2ph

50/60Hz

380V 2ph

50/60Hz

380V 2ph

50/60Hz

Input power

15KVA

15KVA

18KVA

20KVA

Double side weld

0.6+0.6

0.6+0.6

1.0+1.0

1.5+1.5

Dimension(mm)

 450×710×940

 450×710×940

 450×710×940

 450×710×940mm

Net weight

43kgs

50kgs

60kgs

70kgs
