Applicationt:
auto
Production Description:
C45N MCB
C45N series circuit breaker is used in lighting distribution system or morot distribution system for protection overload and short-circuit in the system. The product is neoteric instructure, light in weight, reliable and exellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shock-proof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two, three,four- pole 415V circuit for overload and short circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normalcase. The products comply with IEC 60898 & BS 3871.
SPECIFICATION:
StandardRated current(A)Pole numberRated voltage(V)Breaking
capacity(A)BS3871-1
IEC608981 to 40
50 to 63124060002,3,44156000124040002,3,44154000IEC157-111220/240100002,3,4220/240200002,3,4380/415100031220/24080002,3,4220/240200002,3,4380/415800010 to 401220/24070002,3,4220/240160002,3,4380/4158000501220/24060002,3,4220/240100002,3,4380/4156000631220/24050002,3,4220/240100002,3,4380/4155000
StandardRated current(A)Pole numberRated voltage(V)Breaking
capacity(A)BS3871-1
IEC608981 to 40124040002,3,44154000IEC157-11 to 401220/24060002,3,4220/240120002,3,4380/41560001.Setting temperature of protective characteristics at 40.
2.Rated Voltage: 240V/415V.
3.Rated current: 1,3,5,6,10,16,20,25,32,40,50,63A
4.Electrical life: more than 8000 operations.
5.Mechanical life:(O-C) more than 20000 operations.

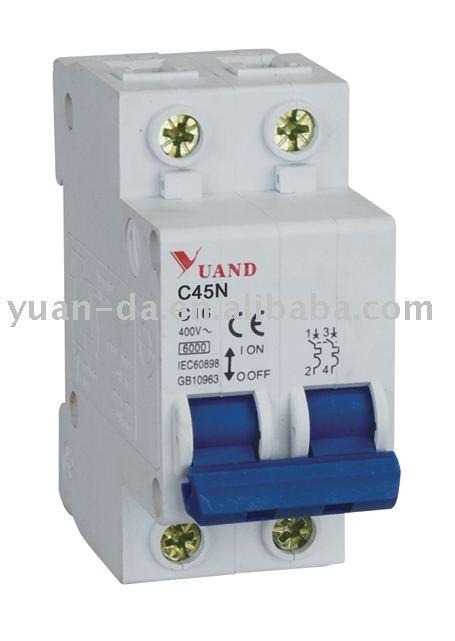

C45N MCB
High breaking capacity
Quicklytrip and high fire-resistant
