Applicationt:
General
Production Description:

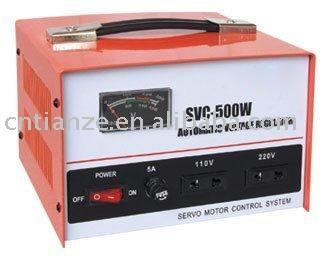

SVC regulator:
small size,light weight,
less output waveform distortion,
reliable performance
SVC voltage regulator consists of contact voltage regulator,sampling control circuit and servo motor.When input voltage or load changes,sampling control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,which turns the arm,adjusting voltage until the output voltage is regulated into the rated output voltage.
The products is of small size,light weight,less output waveform distortion and reliable performance.To guarantee its quality,foreign advanced technology and main parts are introduced and imported.It is widely used in electrical appliances which need constant voltage power supply,and in fields of industry producing,scientific research and medical hygiene.
The product itself consumes little and can be continuously used for a long time.
Input Voltage
160V~250V 70V~130V
Output Voltage
220±3% with 110V±3%
Phase
Single Phase
Frequency
50/60 Hz
Response time
within 1 sec.against 10% input voltage deviation
Efficiency
Better than 90%
Ambient temperature
5 oC~+40 0C
Relative Humidity
Less than 95%
Waveform distortion
Non-lack fidelity in waveform
