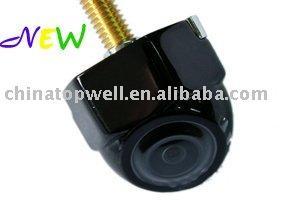

Waterproof Car Reversing Camera T-629

Product Attribute:

Minimum Illumination:0.01Lux

Applicationt:

universal

Production Description:

1.Waterproof Car Reversing Camera T-629
2.Video System:NTSC or PAL
3.Low Illumination Sensor
4.170 Degree Waterproof Lens

Waterproof Car Reversing Camera T-629

Image Device:OV7949,OV7950,PC1030N or MT9V136

TV System:PAL/NTSC
Effective Pixels: 628 x 586 pixels / 656 x 492 pixels
Sensing Area: 5.961mm x 4.276mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 420TV lines
Minimum Illumination:0.01 Lux
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL) / 1/60Sec-12μSec (NTSC)
BLC: Auto
Current Consumption: Max.120mA
Power Supply:DC9V-15V
Operating Temperature: -20~+70 RH95% Max Storage Temperature: -40~ 80 RH95% Max
Lens:1.7mm waterproof lens
Lens Angle:170°(N),170°(P)
