Applicationt:
Truck
Production Description:

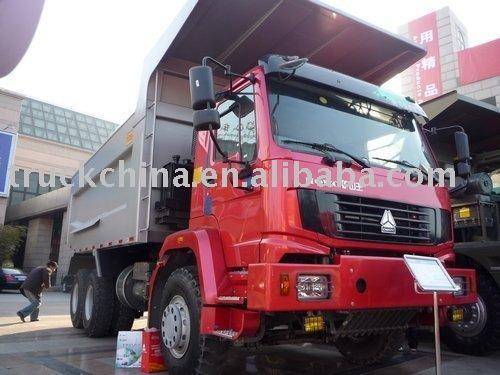

SINOTRUK HOWO 6X4 Mining Tipper/Dump Truck
LOAD CAPACITY:40TON
ENGINE MODEL:SINOTRUK 371HP EURO II
SINOTRUK HOWO 6X4 Mining Tipper/Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: HW70(Air conditioning)
Engine
Engine brand: SINOTRUCK BRAND
Engine model: SINOTRUK 371HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. output:371hp@2200rpm
Max torque: 1500NM@1100-1600rpm
Bore/Stroke(mm):126/130
Specific fuel consumption: 198g/Kwh
Gear box
Gear box:HW19710
Clutch: GF430 Spring type
Steering: ZF8098 integral type power-steering
Tyre
Tyre: 14.00-20
No. of tyre: 10+1spare
Front axle: HOWO front axle 7ton
Rear axle: AC16
Spring: 9/12
Fuel tank capacity (L): 400
Max. speed (km/h): 75
Kerb. mass: 10000kg
Total mass: 50000kg
Wheel base (mm): 3600+1400
Front overhang (mm): 1630
Rear overhang (mm): 1000
Front track (mm): 2434
Rear track (mm): 2250
Approach angle: 21 degree
Departure angle: 34.5 degree
Dimension (mm): 8250x3000x3852
Body:
Inner size(mm): 5400x2800x1500 Capacity: 22.68CBM
Thickness of body steel(mm): floor12mm side & back 8 mm
