Stainless steel high performance clamp[e-Catalog]

Product Attribute:

Material:stainless steel

Standard or Nonstandard:Standard

Applicationt:

universal

Production Description:

1, Murray a Worldwide Leading Brand
2, 100 years in high performance clamp profession
3, Certification: ISO9001, TS16949, ROHS

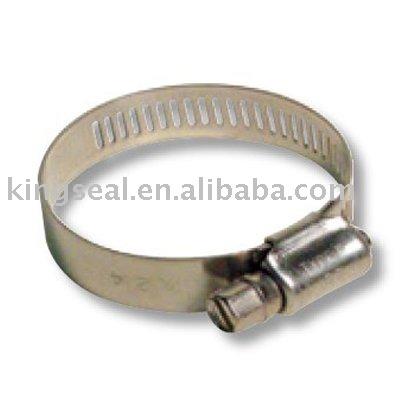

High performance clamp

High Torque All “316” Series Stainless Steel Construction Band, housing and screw are 316 Series Stainless Steel. Screw is 5/16” slotted hex head. 1/2” inch wide band is thicker than standard worm drive clamp. This construction yields superior performancein corrosive environments. Applications include plumbing, water well, municipal storm drain systems, irrigation, marine and transportation.

Rated Ultimate Torque: 87in.lbs. min. (9.8Nm)

Recommended Installation Torque: 45 -65in.lbs. (5.1 - 7.3Nm)

"A"Diameter Range

SAE Size

Part Number

Decimals

Inches

Millimelers

6

HDL 6SS

0.44

0.78

7/16

25/32

11

20

8

HDL 8SS

0.44

0.91

7/16

29/32

11

23

10

HDL 10SS

0.56

1.06

9/16

1-1/16

14

27

12

HDL 12SS

0.69

1.25

11/16

1-1/4

18

32

16

HDL 16SS

0.75

1.50

3/4

1-1/2

19

38

20

HDL 20SS

0.81

1.75

13/16

1-3/4

21

44

24

HDL 24SS

1.06

2.00

1-1/16

2

27

51

28

HDL 28SS

1.31

2.25

1-5/16

2-1/4

33

57

32

HDL 32SS

1.56

2.50

1-9/16

2-1/2

40

64

36

HDL 36SS

1.81

2.75

1-13/16

2-3/4

46

70

40

HDL 40SS

2.06

3.00

2-1/16

3

52

76

44

HDL 44SS

2.31

3.25

2-5/16

3-1/4

59

83

48

HDL 48SS

2.56

3.50

2-9/16

3-1/2

65

89

52

HDL 52SS

2.81

3.75

2-13/16

3-3/4

71

95

56

HDL 56SS

3.06

4.00

3-1/16

4

78

102

60

HDL 60SS

3.31

4.25

3-5/16

4-1/4

84

108

64

HDL 64SS

3.56

4.50

3-9/16

4-1/2

90

114

72

HDL 72SS

4.06

5.00

4-1/16

5

103

127

80

HDL 80SS

4.56

5.50

4-9/16

5-1/2

116

140
