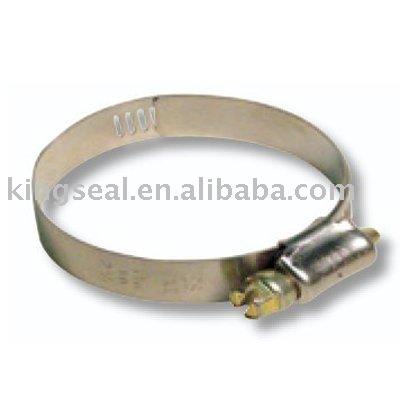

F Clamps With Extended Band 1/2"Wide Worm Gear[e-Catalog]

Product Attribute:

Material:stainless steel

Applicationt:

Universal

Production Description:

1.Murray a 100year's world-leading brand
2.SAE J1508,ISO9001,ROHS

The inner band is an integral extension of the 1/2” wide band to create a smooth inner surface that prevents extrusion of soft hose through the slots. Band and housing are 200/300 Series Stainless Steel with 5/16” slotted hex head screw.

Rated Ultimate Torque: Carbon/400SS Screw 50in.lbs. min. (5.6Nm) 300 Series Stainless Screw 60in.lbs. min. (6.8Nm)

Recommended Installation Torque: 30-40in.lbs. (3.4 - 4.5Nm)

Part  Number

“A” Diameter Range

Double Plated Screws

“400” Series Stainless Steel Screws

All “300” Series Stainless Steel

Decimals

Inches

Millimeters

Min.

Max.

Min.

Max.

Min.

Max.

4808

4808 SS

4808 SS 305

.50

.91

1/2

29/32

13

23

4810

4810 SS

4810 SS 305

.63

1.06

5/8

1-1/16

16

27

4812

4812 SS

4812 SS 305

.69

1.25

11/16

1-1/4

18

32

4816

4816 SS

4816 SS 305

.81

1.50

13/16

1-1/2

21

38

4820

4820 SS

4820 SS 305

.94

1.75

15/16

1-3/4

24

45

4824

4824 SS

4824 SS 305

1.06

2.00

1-1/16

2

27

51

4828

4828 SS

4828 SS 305

1.31

2.25

1-5/16

2-1/4

33

57
