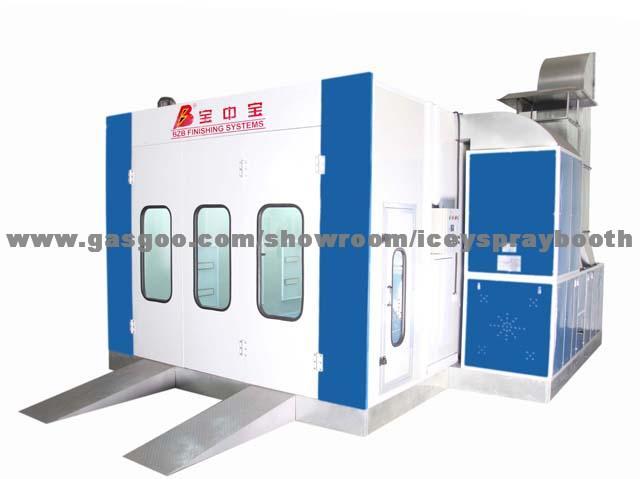

BZB-T8000 Spray Booth

Typical Clients: Audi 4s

Audi 4s

Outside Size:(mm)		Inside Size:(mm)	Front Door:(mm)	Total Power:(km)
7000x5360x3430		6900x4000x2750	3000(w)x2700(h)	17

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick,Heat-Insulation panel,wall board:50mm thick


	Basement	Two grid&three Embossed Plate, Galvanized Steel Sheet construction,two ramps made of embossed plate, each 600mm wide

Air Circulation System	Inhaling Ventilator	Blower Capacity: 25000m³/h	Exhaust Ventilator	Blower Capacity: 25000m3/h
		Rolling Speed: 900rpm
		Power: 7.5kw		Power: 7.5kw
		Quantity: 1 sets		Quantity: 1 sets
	Air Speed: 0.35m/s, air recycling times:320 times/h
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 m. Ceiling Filter Capture Granules Bigger than 4m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.


Heating System	Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 20N Damp Motor
	Heat Energy Converter	SUS 304 Stainless Steelheat exchanger, Argon Arc Welding


	Max Temp:80CHeating Time: 5-7min(20-60), Fuel Consumption: 4-6kg/vehicle

Light System	Ceiling Light:32 pcs 36w Philips Lamp;800 Lux, bottom light:16pcs 36w Philips Lamp, 1000Lux. It matches tempered glass and high temperature wire.
Electric Controlling System	multi-layer fiberglass filter, active carbon filter, the outlet of exhaust gas conforms to GB16297-1996 National Standard.spray&baking switch,light switch, emergency stop, Breakdown Alarm
