Product Attribute:
Voltage:DC10-32v
Applicationt:
auto
Production Description:

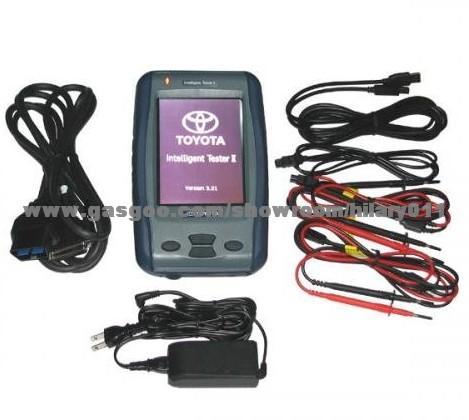

Intelligent Tester II IT2 for Toyota
CAN Communication DiagnosisDST-2 Intelligent Tester II IT2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
Easy operation on LCD display with touch panel 5.7inch full color display with touch panel assists an easier operation.
Volt meter and Oscilloscope Not only communication basis diagnosis [Diagnostic code, ECU data monitor, Active test], but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
Data recording to your PC Saved data such as data-list can be downloaded to your PC.
IT-2 Main Unit:
Items Specification Dimensions 145mm (W) x 223mm (H) x 71mm (D) Weight Approx. 1380g
Source voltage DC10-32V Power consumption Normal:7W(12VDC), Charging: 10W (12VDC) Operation temperature 0~45C
Storage temperature -10~60C
LCD display 5.7-inch color STN (320x240),
transparent type of 256 colors
Adjustable brightness /contrast Touch panel Input:
by finger or stylus pen Key Four (up, down, two function keys)
Built-in clock For a time stamp PC Communication PC card slotCFx1ch (CF standard type I, II)
USB Host: 1ch, Function: 1ch Serial 1ch(RS-232C) Vehicle communication CAN, ISO9141
Back up power supplyLithium-ion battery 7.4v 1000mAH Recharge hour
(at normal temperature)
Approximate operating time Approx 5 hours (fully discharge to fullcharge) 80 minutes (normal operation) Voltage Measurement
Items Specification Maximum sampling rate 250s/sec Input channel 1ch Voltage range (vertical scale) 1V/div, 2V/div, 5V/div Time range (horizontalscale) 100ms/div, 200ms/div, 10s/div
Oscilloscope Function:
Items Specification Maximum sampling rate 500ks/sec Input channel 2ch Trigger functions Mode Auto, normal, single Trigger 10%, 50%, and 90% of themonitor Voltage range (vertical scale) 100mV/div, 200mV/div,500mV/div~10V/div Time range (horizontal scale) 5us/div, 100us/div,200us/div,~10s/div (200ms and higher is the Roll mode)
