Product Attribute:
Applicationt:
Auto
Production Description:

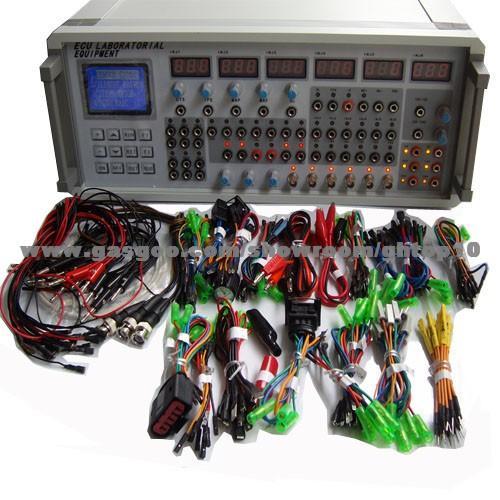

ECU REPAIR TOOL-VIP (FULL CABLES)
Model: AF-E9
ECU Laboratorial Equipment V2012
The ECU laboratorial Equipment VIP Add more diagnose testing cables of different car .
The ECU laboratorial Equipment VIP is designed by our company alone, its design mainly aims at a large number of vehicle electricians who have ideals in diving into vehicle's hi-tech.
This equipment can simulate the signal of AUTO, Such as the signal of crankshaft, camshaft, top dead center, CID sensor, air intake, IATS, CTS, O2S, switch of A/C and etc.
Load the signals well, can disengage repairing ECU from AUTO.
It's evidenced that it can examine and repair faults of EFI engine via simulating the engine of sensor, so that it greatly enhances repair speed and faults judgment abilities.
Main Features :< >
According to engine control system, the user can set different types of crankshaft independent, Signal output (for all models of the computer-driven)Automatic transmission input and output shaft signal simulationCommonly used computer automatic pin connector tipsSet the waveform data written directlyCrank signal waveform data is automatically set by your computerTime to test the independent six-channel injectorEngine speed signal outputSpeed signal output (Hall signal, magnetic signal)Three , four-channel ABS wheel speed signal outputDiesel Electronic Control System TestingEGR solenoid valve drivenCarbon cans clear the Solenoid valve drivenTachometer drivenBlower Control Module DrivenIdle valve driven12V \ 24V stepper motor driven (four, six-lane)12V \ 24V servo motor drivenInjector drivenOil pressure solenoid valve drivenIgnition module drivenParking sensor (ultrasonic) probe -drivenAutomatic transmission Shift valve drivenShift quality valve drivenOil pressure adjust valve-drivenWater temperature,intake air temperature, outdoor temperature, evaporation temperature sensor signal simulation boxOxygen sensor signal simulation (manual)Oxygen sensor signal simulation (auto signal)Throttle signal simulationCarbon cans clear the Solenoid valve simulationEGR solenoid valve simulationAir flow meter, air pressure sensor (analog, digital) signal simulationPoint fire coil simulationInjector simulationIdle speed stepper motor simulation (four, six-lane)A \ C relay simulationOil pump relay simulationRadiator fan relay simulationAudio signal output, power amplifier drivenAutomatic transmission Shift valve, Shift quality valve, oil pressure adjust valve simulationInjector pulse wldth measurementCentral locking server simulationAnti-theft resistance simulationAll of the output signal overload protectionHigh-Power 5V \ 12V \ 24V voltage outputUser extensions
Output waveform can be set: five-channel arbitrary waveform output settings, which can output 1°crank angle signal, the signal sub-cylinder, 1 cylinder TDC signal, cam signal, the phase accuracy. Applicable to all models around the world crankshaft, camshaft signal simulation; also applies to all the worlds automatic transmission input, output shaft signal simulation; ABS three, four-channel wheel speed signal simulation; computer settings waveform, the network lifetime free upgrades, at the same time the waveform data can be stored long-term within the memory cards.Output Signal: magnetic signals, the Hall signal, optical signal;
Actuator driven: driven current 3A, 1%-99% duty cycle continous adjustment, continously adjustable frequency.
Sensor Signal Simulation: resistance 100-10000 ; voltage 0V~5V×3 0V~1V
Actuator Simulation driven: 54 channel simultaneous outputStepping Motor Driven: vurrent 1A,applicable to all vehicles with four-,six-lane12V\24V,stepping motor driven.
Output current: 5V-5A \ 12V-5A \ 24V-3A
Instrumentapplication Scop
Dynamic diagnosis of automotive sensors, automotive engine, transmission, ABS, air conditioning, anti-theft and other computer repair, car model-driven teaching aids, research and development in automobile production;
This instrument applies toGermany, the United States, Japan, Korea, China-made mini-cars and dozens of vehicle series,and thousands of Vehicle model ;
Channel arbitrary waveform analog output function profile
Packing list:
* ECU Laboratorial Equipment mainframe: 1 PCS
* ECU Connect cables : 18 PCS
* Smallpin Connect cables : 10 PCS
* Waveform(OSC) connect cable 3PCS
* ECU Signal Testing Cables : 110PCS
* Waveform write date cable(USB Cables) 1PCS
* Power cable 1PCS
* Software CD Data 1PCS
