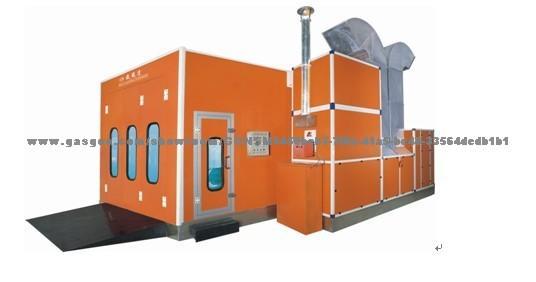

WLD9100 WLD8400 WLD8300 Spray Booth

Product Attribute:

Air Volume:12000m3/h

Applicationt:

Universal

Production Description:

Configuration:

• Wallboard: Sandwichstyle EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
• Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 3 pcs of ramps.
• Door: 3 pcs of front doors with aluminum frame. Size: 3000(w) x 2750(h). 1 pc of emergency door.
• Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan.BELIMO20N electric damper.
• Burner:Italy Riello RG5Sdiesel burner, 260000Kcal/h. The heating time 4-5min(20-60C). Max temperature
  at 80C. Fuel consumption is 4-5kg/vehicle.
• Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
• Lighting System: Ceiling light has 32 pcs of 40w lamps. Side light has 16 pcs of 40w lamps. 900 Lux.
• Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10m. Ceiling filter capture granules bigger than 5m. The air cleanliness in the working environment can reaches 98%.
• Pollution Control System:Special configure with Active Carbon Filter System.
• Other: Spare parts holding bar at the rear.
