HY-CRI200 Common Rail Injector Test Bench[e-Catalog]

Typical Clients:

Changchun Bus Company

Production Description:

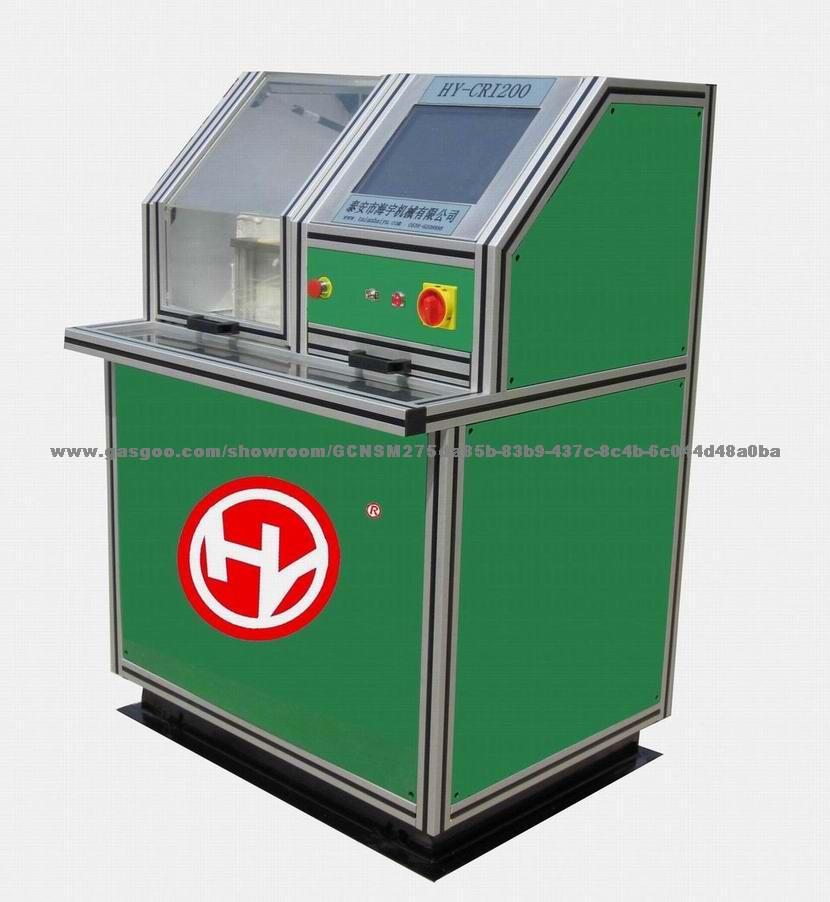

HY-CRI200 High Pressure Common Rail Test Bench is kind of special equipment which is newly independent researched used to test common rail injectors and pumps. It is controlled by industrial computer. This test bench adopts original Bosch CP3.3 high pressure pump to generate 0~2000bar pressure, and common rail injectors and pumps of Bosch, Delphi, Denso, Siemens and the other brands can be tested.

1.
   ISO9001:2008 Certificate & CE certificate.
2. Output Power: 5.5kw
3. Alpha Frequency Converter 5.5kw
4. Voltage: Three phase four wires, 380V, 50/60Hz.
5. Main Frame: Aviation Aluminum Structure.
6. Cast Iron Operation Platform. Low Noise.
7. Electric System: DELIXI or CHINT.
8. Bosch Common Rail Pipe
9. High pressure pump: Bosch CP3.3
10. Tertiary filter, filtering precision: 5um.
11. Revolving speed: 0~1000r/min.
12. Testing types: Common Rail Injectors and some pumps of Bosch, Denso, Delphi, and Siemens.
13. Overall dimension: 1000mm*850mm*1430mm
14. Packing: Wooden case fit for delivery.
15. Net weight: 400kg
