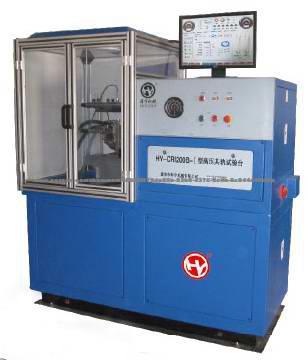

HY-CRI200B-I Common Rail Injector And Pump Test Bench[e-Catalog]

Typical Clients:

Changchun Bus Company

Production Description:

1. ISO9001:2008 & CE Certificate.
2. Output power: 15kw.
3. Frequency converter: 15kw
4. Voltage: Three phase four wire, 380V or 220V, 50/60Hz
5. Electric System: DELIXI or CHINT.
6. Main Structure: Aviation Aluminum Structure.
7. Cast Iron Operation Platform. Low Noise.
8. Common Rail Pipe: Bosch
9. High pressure pump: Bosch CP3.3
10. Tertiary filter, 5um.
11. Revolving speed: 0~1000r/min.
12. Testing types:
    1. PIEZO injectors and Common Rail Injectors of Bosch, Denso, Delphi, and Siemens.
    2. Common Rail Pumps of Delphi, Siemens, Bosch CP1, CP2, CP3, and Denso HP0, HP3, HP4.
13. Overall dimension: 1600mm*800mm*1695mm
14. Packing: Wooden case fit for delivery.
15. Net weight: 1500kg
