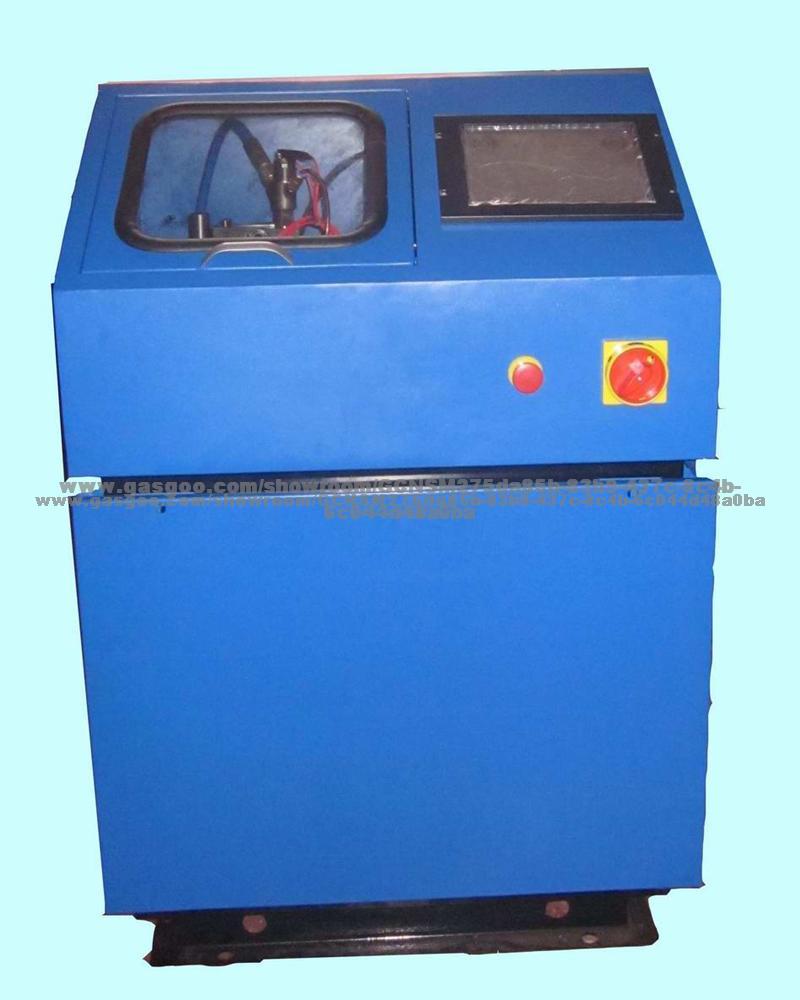

HY-CRI200A Common Rail Injector Test Bench[e-Catalog]

Typical Clients:

Changchun Bus Company

Production Description:

1. ISO9001:2008 & CE Certificate.
2. Output Power: 2.2kw
3. Frequency Converter: 2.2kw
4. Voltage: Three phase four wire, 380V or 220V, 50/60Hz
5. Cast Iron Operation Platform. Low Noise.
6. Electric System: DELIXI or CHINT.
7. Common Rail pipe: Bosch
8. High pressure pump: Bosch CP1
9. Tertiary filter, filtering precision: 5um.
10. Revolving speed: 0~1000r/min.
11. Testing types: PIEZO injectors, and Common Rail Injectors of Bosch, Denso, Delphi, and Siemens
12. Overall dimension: 750mm*620mm*1150mm
13. Packing: Wooden case fit for delivery.
14. Net weight: 310kg.
