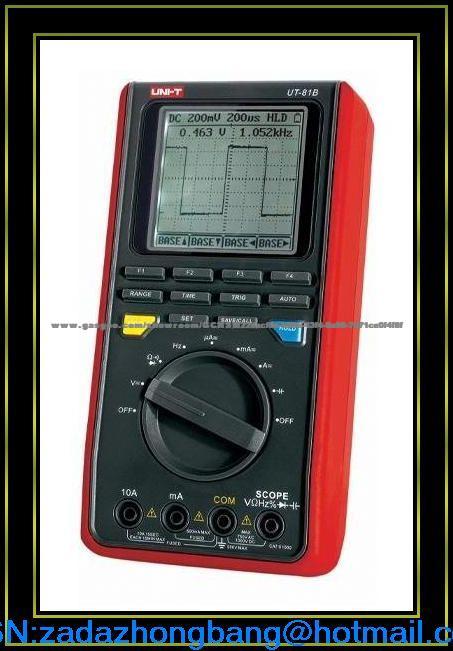

Uni-T UT-81B Multimeter Oscilloscope 8MHz W/ USB And Vivid LCD UT81B

Applicationt:

Universal

Production Description:

Specifications:

Basic Functions Range Best Accuracy
DC Voltage: 400mV/4V/40V/400V/1000V +/-(0.8%+8)
AC Voltage: 4V/40V/400V/750V +/-(1%+15)
DC Current :400mA /4000mA/40mA/400mA/4A/10A +/-(1%+8)
AC Current: 400mA/4000mA/40mA/400mA/4A/10A  +/-(1.5%+8)
Resistance :400W/ 4kW/40kW/400kW/4MW/ 40MW +/-(1%+5)
Capacitance: 40nF /400nF/4mF/40mF/100mF +/-(3%+8)
Frequency: 10Hz~10MHz +/-(0.1%+3)
Vertical Accuracy :   +/-(5%+1)
Input Sensitivity: 20mV/div-500V/div (1-2-5)

Horizontal Accuracy  : (0.01%+1)
Basic Functions Range Best Accuracy
DC Voltage :400mV/4V/40V/400V/1000V +/-(0.8%+8)
AC Voltage: 4V/40V/400V/750V +/-(1%+15)
DC Current: 400mA /4000mA/40mA/400mA/4A/10A +/-(1%+8)
AC Current :400mA/4000mA/40mA/400mA/4A/10A  +/-(1.5%+8)
Resistance :400W/ 4kW/40kW/400kW/4MW/ 40MW +/-(1%+5)
Capacitance: 40nF /400nF/4mF/40mF/100mF +/-(3%+8)
Frequency :10Hz~10MHz +/-(0.1%+3)
Vertical Accuracy  : +/-(5%+1)
Input Sensitivity :20mV/div-500V/div (1-2-5)

Horizontal Accuracy  : (0.01%+1)
Timebase Range: 100ns/div-5s/div (1-2-5)
