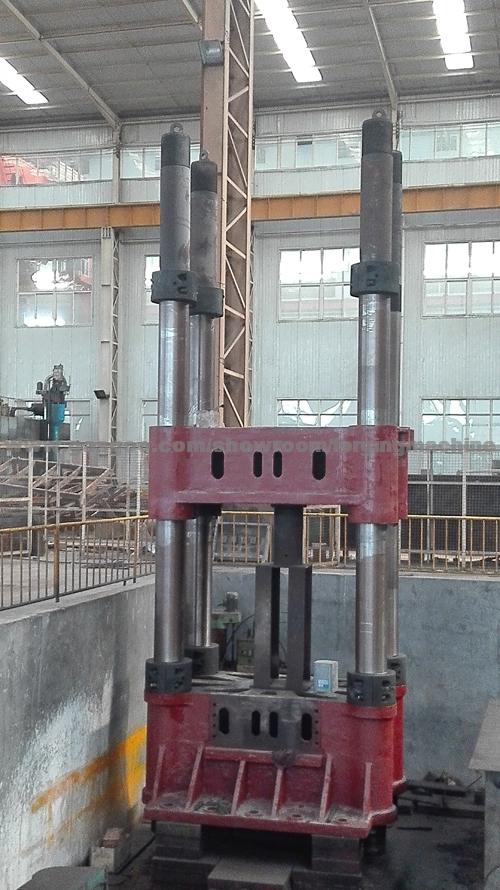

Refurbished Open Die Hydraulic Forging Press

Product Attribute:

Output Power:1540kw

Applicationt:

Forging Industry

Production Description:

16/20MN Forging Hydraulic Press

4.1Nominal capacity  25Mpa  16 MN
                 30Mpa  20 MN
4.2Plunger diameter of main cylinder  920 mm
4.3Return capacity  2000 kN
4.4Daylight  3100 mm
4.5Max. slider working stroke  1400 mm
4.6Center distance between columns  2400×1500 mm
4.7Size of movable working table  4000×1500mm
4.8Capacity of movable working table  630 kN
4.9Stroke of movable working table  2000 mm
4.10 Slider speed
speed at approach  250 mm/s
working speed  45 mm/s
return speed  250 mm/s
