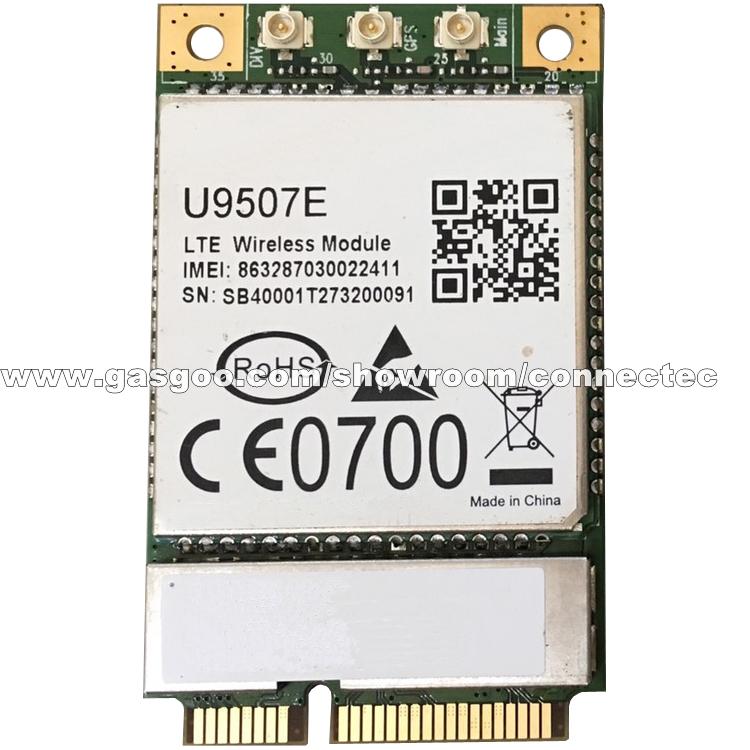

LTE Module U9507E-C1 MINI PCIE 4G FDD LTE Module

Product Attribute:

Applicationt:

.

Production Description:

LTE-FDD/WCDMA/GPS Cellular Module

U9507E-C1 is a wireless LTE CAT1 module which is designed for the global market. It is a consumptive product; It can be designed in many kinds of applications which can work on LTE-FDD/WCDMA/GPS/GLONASS(Optional) network. On LTE-FDD network, U9507E-C1 enables connect to the Internet at DL data speed up to 10Mbps and UL data speed up to 5Mbps, in the area where LTE service are not available, U9507E-C1 still enables reliable and secure data connect over WCDMA network.

U9507E-C1 provides SMS, MMS, Phonebook functions as well as high speed access, and also audio function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet, Electric-book, MID, Vehicle equipment, etc.

General features:

• Output power
  - Class 3 (0.25W) for LTE/WCDMA
• Control via AT commands
  (3GPP TS27.005/3GPP TS27.007 )
• Supply voltage range: 3.3V- 4.2V
• Low Power consumption
  - Sleep mode: 5mA
  - Power down: 50 μA
• Dimensions: 51.0×30.0×3.4mm
• Operation Temperature : -40°C to +85°C

Specifications for SMS:

• Point-to-point MO and MT
• SMS cell broadcast
• Text and PDU mode

Additional features:

• VoLTE
• Phone book
• PCM
• DTMF

Band Configuration:

U9507E-C1:

• LTE-FDD Band 1/3/5/7/8/20/28
• WCDMA Band 1/5/8

GPS:

• GPS frequency: 1575.42MHz
• At least support 44 channels
• Location accuracy: <10m
• Sensitivity
  - Acquisition: -158dBm
  - Tracking: -162dBm
• TTFF:
  - Cold Start: 60s
  - Warm Start: 45s
  - Hot Start: 15s

GLONASS(Optional):

• GLONASS frequency: 1601.7MHz
• At least support 44 channels
• Location accuracy: <10m
• Sensitivity
  - Acquisition: -155dBm
  - Tracking: -160dBm
• TTFF:
  - Cold Start: 60s
  - Warm Start: 45s
  - Hot Start: 15s

Specifications for data:

• Support Release 9 Category 4
• LTE-FDD up to 10 Mbps DL,5 Mbps UL
• WCDMA up to 42.2Mbps DL,5.76Mbps UL
• Transparent mode
• PBCCH support
• PPP-stack
• Coding schemes CS 1,2,3,4
• FOTA
• TCP/IP
• NDIS

Interfaces:

- Power supply

- USB 2.0 high speed

- UICC/SIM/UIM interface 3 V / 1.8 V

- UART

- PCM

- Antenna interface

- HSIC

Approvals:

• RoHS
• CE
• GCF
