BZB-8100 Spray Booth Manufacturer

BZB-8100 Spray Booth Manufacturer

Application:  all types autos

Market Type:  After Market

Packing:  Standard Exporting Package

Samples:  Not Available

Maximum Prodcution Capacity:  38000sets/Year

Delivery Time:  Within 10 Days After Receiving Deposit

Export Ratio:  61% - 70%

Price Terms:  FOB

Minimum Order:  1Set/Sets

Product Attribute:

Power:7kw

Voltage:380v

Applicationt:

all types autos

Production Description:

Spray booth BZB-8100 is our most economical spray booth, which appeals to our customers with its good quality and low price.

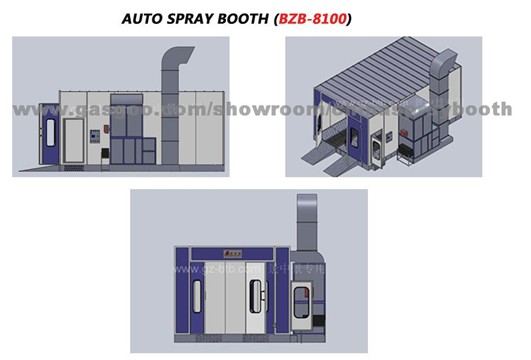

BZB-8100 Economical Spray Booth


Cabin System		 Wallboard EPS (epispastics polystyrene) 0.326mm Color Steel Skin Boards, 50mm Thick,Galvanized Steel Roof Panel, Tongue & Groove Structure, Compound Construction, Anti-flame and Heat-Insulation
Basement Galvanized Steel Sheet Construction, Two Rows Grid & Three Embossed Plate, 2pcs ramps:600*2000mm.
Intake air system Inlet Fan Volume:    22000m³ /h Power: 5.5kw Quantity: 1 set turbo fan
Total Air Volume: 22000m³ /h; Air Speed: 0.3m /s,Ventilation rate:240tims/h
Exhaust air system Without it,optional:1set 4kw centrifugal fan,air volume is 12500m³ /h,need to add EXW $1000---$1500/set for the exhaust air system.
Air Purification System Dual Filtering Structure, The Primacy Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. TSP1.4mg/m³
Heating System Burner Italy Reillo Brand, G20 200000Kcal/h, The Heating Time 8-10min
Heat Energy Converter SUS304 Stainless Steel, Argon Arc Welding. The Heat Exchange Rate 85%
Highest working temperature:80 °C , Fuel Consumption: 5 -7kg /vehicle/h,10N Manual damper controls spraying and baking circulation.
Lighting System Ceiling Light: 24 pcs *36w Philips Lamp
Illuminance:800 Lux
Electric Controlling System Spraying, risen-temperature spraying, baking temperature, time setting, failure indicator lamp, lighting switch,breakdown alarm,emergency stop, limited-temperature device
Environmental system  optional:1set 4kw centrifugal fan,air volume is 12500m³ /h,need to add EXW $1000---$1500/set for the exhaust air system.
Optional color Blue,white,orange,red
20GP  1 SET 40GP  3 SETS 40HQ 3 SETS
