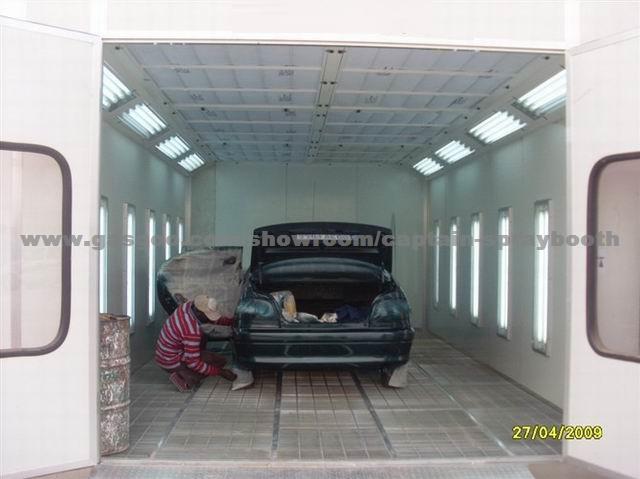

Car Spray Booth For Europe[e-Catalog]

Application: surface painting

OEM No/Model: EZ-YB100R

Market Type: After Market

Maximum Prodcution Capacity: 196sets/month

Place of origin: China

Minimum Order: 1Set/Sets

Language Translator

Product Attribute:

Applicationt:

surface painting

Production Description:

We are a professional manufacturer of Spray Booth, car lift and related accessories. the items have been sold all over the world with CE certificate.

If you have interest, just freely contact us!

Product Description
Outside size: (mm)7000x5250x3430
Inside size: (mm)6900x3900x2650
Main door size: (mm)3000(W)x2600(H)
Total power: (kw)8.5

Outside Size	700052503430mm
Inside Size	690039002650mm

Room system
1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets.
2. Main door frames are made of bending section, emergency door at the main door.
3. Room frames are fixed by galvanized sheet.
4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates.
5. Inside ramps construction.

Air circulation system
1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h
2. Air generator group consist of painted section bar and galvanized sheets.
3. Exhaust air duct consist of galvanized sheets and flanges.
4. On-load air velocity: 0.35m/s, air change rate: 320times/h

Purification system
1. Inlet air filter is high quality filter, it can catch 10um dust particle.
2. Roof filter is high-efficient filter, it can catch 5um dust particle.
3. Floor filter is fiber glass filter.

Heating system
Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps.
Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately.
Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C).

Lighting system
1. Roof lighting: 24pcs*36w Philips lamps.
2. Illuminance: 700Lux
3. Side lighting system is optional

Control system
1. It adopts high-quality electronic components, Major loop set Multiple protection.
2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc.

Exhaust gas disposal
1. Direct exhaust
2. Exhaust fan is optional

Export Package:
20'/40'HQ PCS
1 set/20'GP, 3 sets/40HQ
