Funiture Painting Room With Baking Function[e-Catalog]

Product Attribute:

Applicationt:

surface painting

Production Description:

Products Description

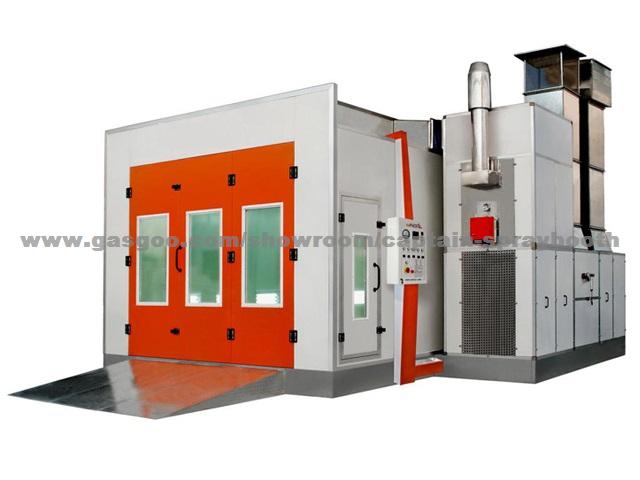

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.

Equipment Constituents

The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.

Booth Dimension
- Internal Size(L×B×H)	17000×5500×5000mm& 55'7''X18'X16'4''
- External Size(L×B×H)	17150×7200×5600mm& 56'3''X23'6''X18'4''
Foundation and Floor
- Surface Area	2sets of exhaust cabinet on side, each size is 15000×1600×660mm
- Metal Basement	NO
Wall and Door
- Steel Wall	Double wall panels of galvanised steel sheet, thickness 75 mm, inside and outside white,   insulated with non-combustible rock wool, with tongue and groove interlocking system, plate thickness 0.6mm, width of panels 950 mm.
- Roof Panel	Double wall panels of galvanised steel sheet, thickness 50 mm, inside and outside white,   insulated with non-combustible rock wool, with tongue and groove  interlocking system, plate thickness 0.326mm, width of panels 1150 mm.
- 4-Folded Entrance Door  With Safety Glass Window	1 Unit, 4200×4800mm(WxH) galvanized steel cover frame, fill in rock wool inside, hanger rail
- Operator's Door With  Safety Glass Window	2Units, 650×2000 mm(W×H)
Lighting System
- Ceiling Lights	20Units, each 4×36W, Total2880 W, with electronic ballasts. IP54 allasts
- Side Lights	28Units, each 2×30W, Total 1680 W, with electronic ballasts.IP54 with electronic ballasts.
Filter System
- Prefilter	Pockets, 8 Units G3 level, 592×560×450 mm
- Ceiling Filters	EU5 Fine Filters, 24 Units
- Exhaust Filters	Fiberglass, Paint-Stop-Filters
Ventilation System
- Intake air system  (Fresh Air)	2×11 kW, direct drive motor, 970 rpm, 380 V, 50 Hz, CE standard
- Exhaust  air system(Exhaust Air)	2×11 kW, direct Drive Motor970 rpm, 380 V, 50 Hz, CE standard
- Fan Capacity 60, 000m/h	60, 000m/h
- Air Flow Speed	+/- 0.25 m/s in an empty booth
Heating System
- Heating Exchange	Stainless Steel
- Heating  Exchange Capacity	172, 000 kcal/h
- Max. Drying  Temperature	80 °C
- Heating time	5-7 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S , Diesel burner , 2 sets
Control Box
- Standard	In line with the European standard
- PLC	Yes
- Overpressure Manometer	Yes
- Safety Thermostat For  Heating And Ventilator	Yes
- Frequency Changer	VACON from Finland
Addition system
Two sets of mobile movalbe platform on the booth

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! ! *Personalized design to meet customer various needs! ! !


Pictures to show the details of our spray booth
