Product Attribute:
Power:30kw
Voltage:110/220/380v
External Size:7000*5400*4100mm
Internal Size:6850*3850*2650mm
Front Door:3000*2600mm
Basement:3pcs front ramps and 2pcs side ramps
Wall Board:75mm rock wool panel double 0.476mm steel
Lighting:Ceiling 8units*4
Heating:Imported Germany BALTUR26 diesel burner
Applicationt:
For all Cars
Production Description:
Model NO.
W-UP1006 B
Sketch |
|
|
Outside Size(mm) |
7000x5400x4100 |
Inside Size(mm) |
6850x3850x2650 |
Front Door(mm) |
3000x2600(WxH) |
Total Power |
30kw |
|
Basement |
=1.2mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx2.0mm; full grilles, made by 30mmx5mm flat steel, then colored plating. ramp size 3000x1800x300mm, 3pcs front ramps and 2pcs side ramps. The whole structure is strong, durable and beautiful. |
|
Cabin System |

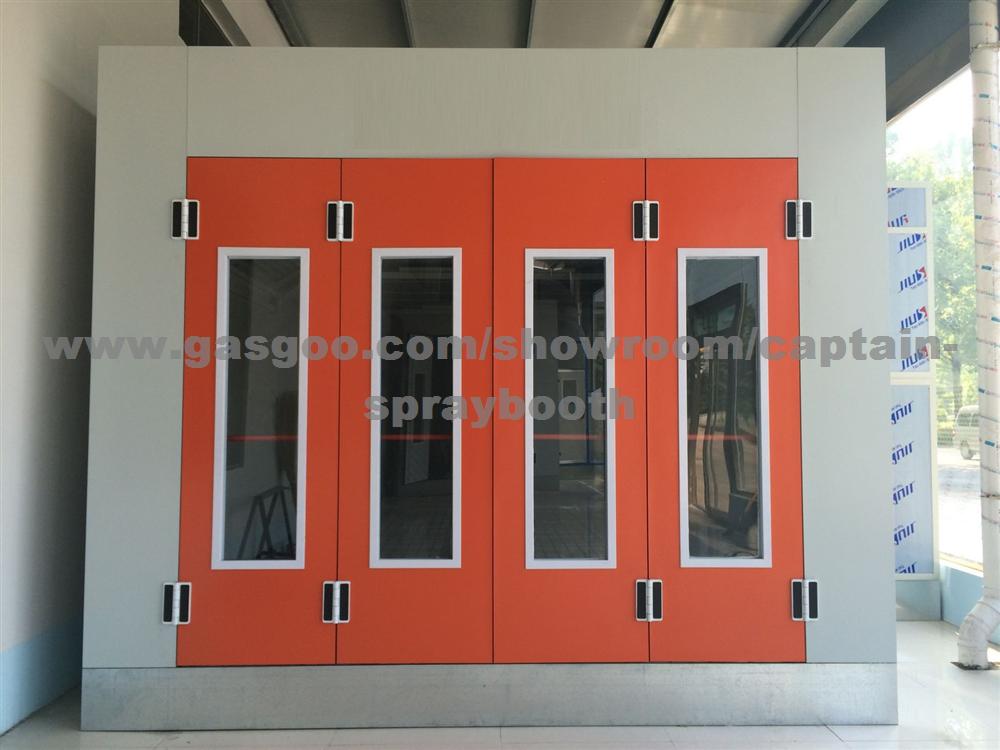

75mm rockwool panel, double 0.476mm steel with tongue and groove structure. 4 folded main door, 3000mmx2600mm, is without aluminum side cover, produced by one-time suppress, with 0.6mm steel. The watching window is with 5mm tempered glass. One fold person door, size is 2000mmx750mm, =1.2mm aluminum alloy frame, with mechanical pressure lock and door shutter. |
|
Ventilation System |
2x11kw DDF-630B centrufugal fans for supplying, air capacity is 44000m3/h; equipped with ventilation pressure controller, Pneumatic damper. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of =0.8mm galvanized steel and with 30mm rockwool inside. |
|
Ceiling |
Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with =1.0mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. Joint by hinge, so it's convineit for changing filter. Sliding dolly is on the top for painting and baking small workpieces. |
|
Lighting System |
4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance1200Lux. Outside structure for conveniet maintenance. 20pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm tempered glass. And the box is bending by =0.8mm galvanized steel with powder coating. |
|
Heating System |
Imported Germany BALTUR26 diesel burner, 260000Kcal/h. Heating exchanger is made of =2.0mm sus304 stainless steel by argon arc welding. |
|
Purification System |
Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And active carbon for the waste gas. |
|
Water based paint drying system |
Top: 48 units ceiling nozzles, adjustable direction, with 1x3kw YDW4.5L centrifugal fan, air capacity 10000m3/h. In the 2 corners, 4pcs nozzles for each corner with 1x7.5kw turbo fan. The duct is made of 1.0mm zinc plate and flange. |
|
Electric Controlling System |
PLC digital controlling, soft touching button, adjusted by frequency converter. The operator can set all the works once. multi-protection for the main circuit, shows the whole working procedure and all breakdowns automatically; temperature and time setting switch, spray & baking switch, light switch, temperature display, humidity display, emergency stop, breakdown alarm, accumulative time, etc. |
|
residual heat recovery system(optional) |
Frame is soldered by 40mmx60mm square tube, The surface sealing plate is made of =0.8mm galvanized steel and with 30mm rockwool inside.Residual heat saver is made of =2.0mm sus304 stainless steel by argon arc welding. It saves the energy by secondary utilization of residual heat recovery. |
|
FOB QINGDAO |
USD 9800 |
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
