Model NO.
UP1006 A

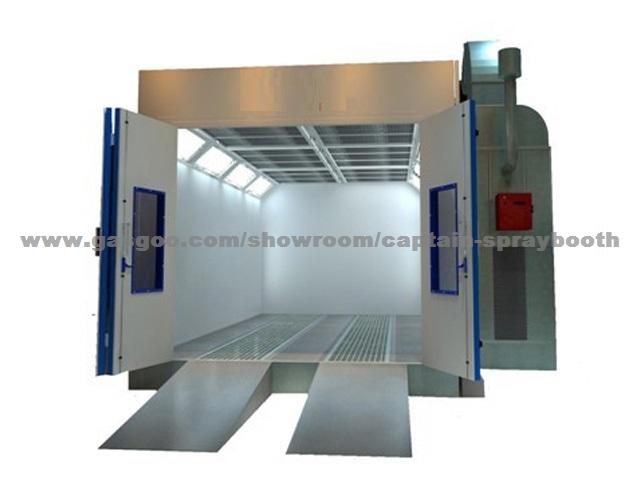

Sketch |
|
|
Outside Size(mm) |
7000x5400x4100 |
Inside Size(mm) |
6850x3850x2650 |
Front Door(mm) |
3000x2600(WxH) |
Total Power |
24kw |
|
Basement |
=1.2mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx2.0mm; full grilles, made by 30mmx5mm flat steel, then colored plating. ramp size 3000x1800x300mm, 3pcs front ramps and 2pcs side ramps. The whole structure is strong, durable and beautiful. |
|
Cabin System |
75mm rockwool panel, double 0.476mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress, with 0.6mm steel. The watching window is with 5mm tempered glass. One fold person door, size is 2000mmx750mm, =1.2mm aluminum alloy frame, with mechanical pressure lock and door shutter. |
|
Ventilation System |
2x11kw DDF-630B centrifugal fans for supplying, air capacity is 44000m3/h; equipped with ventilation pressure controller, Pneumatic damper. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of =0.8mm galvanized steel and with 30mm rockwool inside. |
|
Ceiling |
Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with =0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. Joint by hinge, so it's convineit for changing filter. Sliding dolly is on the top for painting and baking small workpieces. |
|
Lighting System |
4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance1200Lux. Outside structure for conveniet maintenance. 20pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm tempered glass. And the box is bending by =0.8mm galvanized steel with powder coating. |
|
Heating System |
Imported Germany BALTUR26 diesel burner, 260000Kcal/h. Heating exchanger is made of =2.0mm sus304 stainless steel by argon arc welding. |
|
residual heat recovery system(optional) |
frame is soldered by 40mmx60mm square tube, The surface sealing plate is made of =0.8mm galvanized steel and with 30mm rockwool inside.Residual heat saver is made of =2.0mm sus304 stainless steel by argon arc welding. It saves the energy by secondary utilization of residual heat recovery. |
|
Purification System |
Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And active carbon for the waste gas. |
|
Electric Controlling System |
PLC digital controlling, soft touching button, adjusted by frequency converter. The operator can set all the works once. multi-protection for the main circuit, shows the whole working procedure and all breakdowns automatically; temperature and time setting switch, spray & baking switch, light switch, temperature display, humidity display, emergency stop, breakdown alarm, accumulative time, etc. |
|
FOB QINGDAO |
USD 8600 |
