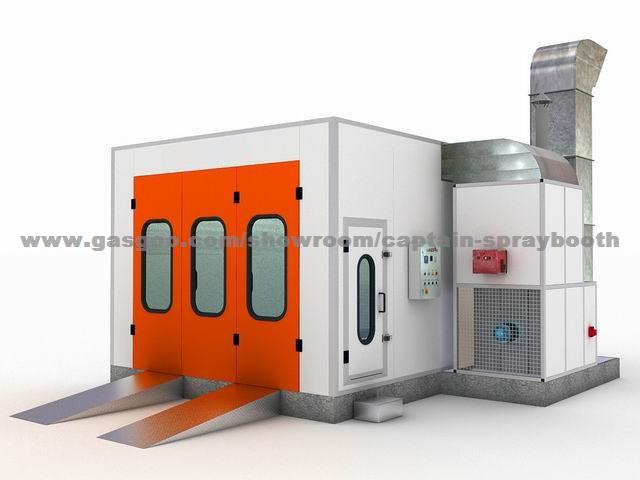

Car Spray Booth, Drying Chamber[e-Catalog]

Application: For all type of car

OEM No/Model: EZ-DB 100R

Market Type: After Market

Quality Certification: CE

Place of origin: Jiangsu, China

Unit Price: USD 5900

Price Terms: FOB

Delivery Port: QINGDAO

Other Price Terms: CIF,CFR

Minimum Order: 1Set/Sets

Language Translator

Product Attribute:

Power:45kw

Voltage:110/220/380v

External Size:7000*5350*33000mm

Internal Size:6900*3900*2650mm

Air Volume:15000m3/h

Color:Orange

Front Door:3000*2600mm

Personal Door:1800*750mm

Wall Board:50mm EPS Panel 0.376mm steel plate

Basement:3 rows of diamond plate 2 rows of grilles

Lighting System:Ceinling 8units*4

Heating System:Infrared Lamp Heating

Applicationt:

For all type of car

Production Description:

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Model NO. EZ-DB 100R Sketch
Outside Size(mm)	7000x5350x3300	Inside Size(mm)	6900x3900x2650	Front Door(mm)	3000x2600(WxH)	Total Power	45kw
Basement	=1.0mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.8mm; 3 rows of diamond plate, 2 rows of grilles, made by 30mmx4mm flat steel, then paint. =2.75mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful.
Cabin System	50mm EPS panel, double 0.376mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window.
Ventilation System	2 sets 4kw YDW4.5L centrifugal fans for supplying, air capacity is 26000m3/h; 1x5.5kw YDW5.6S centrifugal fan for exhausting, air capacity is 15000m3/h. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of =0.8mm galvanized steel and with reinforcing ribs.
Ceiling	Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with =1.0mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating.
Lighting System	4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance1000Lux. 20pcsx30w side lights in vertically embedded into the wall. The protection glass is 5mm white glass. And the box is bending by =0.8mm galvanized steel with powder coating.
Heating System	sliding short infrared lamps on both sides, total is 24kw; Fixed short infrared lamps on the back, total is 6kw.
Purification System	Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And M type active carbon for the waste gas.
Electric Controlling System	High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc.
FOB QINGDAO	USD 5900
