Product Attribute:
Power:98kw
Voltage:380/220v
External Size:23144x6896x5600mmmm
Internal Size:23000x5000x5000mmmm
Color:White
Applicationt:
suitable for big bus, truck and large cars
Production Description:
Detailed Product Description

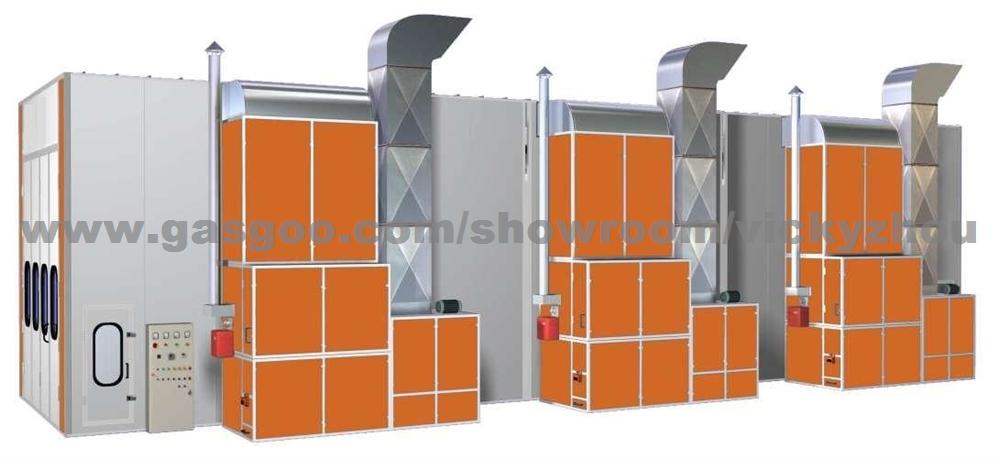

23M Full Grid Industrial Spray Booths With Double Intake Centrifugal Fans
Advantage
1.CE ISO certificate
2.factory,have our own brand name "Xin Guang Li" and "Qiangxin"
3.infrared heating system
4.4 air supply fans,2 axial fans
5.environmental.energy saving,cost saving
6.customize
7.pre-sales service & after sale service
8.booths received good comments from customers,so far we had sold to Germany,Norway,Nigeria,Egypt,
Saudi Arabia,Ethiopia,Qatar,Libya,Namibia,Cameroon,Angola,Tanzania,Seychelles,Philippine,Malaysia,Singapore,
Australia,Russian Federation etc...
We are professional leading factory in China.
Specializing in manufacture kinds of paint spray room system.
And also offering full garage equipments,car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth.Offer car spray baking booth accossories
Booth Dimension |
|
- Internal Size(L×B×H) |
23000×5000×5000mm & 75'4''X16'4''X16'4'' |
|
- External Size(L×B×H) |
23144×6896×5600mm & 75'9''X22'6''X18'4'' |
|
Foundation and Floor |
|
- Grid |
15M full grid ( 2 rows air exhust plenum chamber) |
|
- Metal Basement |
Need to build the base construction , 2 rows of pits in the ground for exhaust air,
dimension of each pit is 20700×760mm(L×W),
with galvanized grids made by twisted steel and flat bar above |
|
Wall and Door |
|
- Steel Wall |
Profiled bar beams in the roof to strengthen the room body Double construction
with insulations EPS , thickness 70mm, m, tongue and
groove interlock structure |
- 4-Folded Entrance Door
With Safety Glass Window |
1 Unit, 4000×4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
- Operators Door With
Safety Glass Window |
2Units, 800×2000 mm(W×H) ( 2 service door all at the left side ) |
|
Lighting System |
|
- Ceiling Lights |
26Units, each 4×36 W, with electronic ballasts |
|
- Side Lights |
32Units, each 4×36W, with electronic ballasts |
|
Filter System |
|
- Filter |
Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
|
- Filtering area |
96M2 |
|
Ventilation System |
- Intake air system
(Fresh Air) |
6×7.5KW double-intake centrifugal fans for intake air, model YDW4.5M,
total air capacity: 126000m3/h |
- Exhaust
air system(Exhaust Air) |
3×11KW double-intake centrifugal fans for exhaust air, with motor outside,
belt-drive, model TAE-710H, total air capacity: 108000m3/h |
|
- Damper actuates |
